- Sku: 9008180018

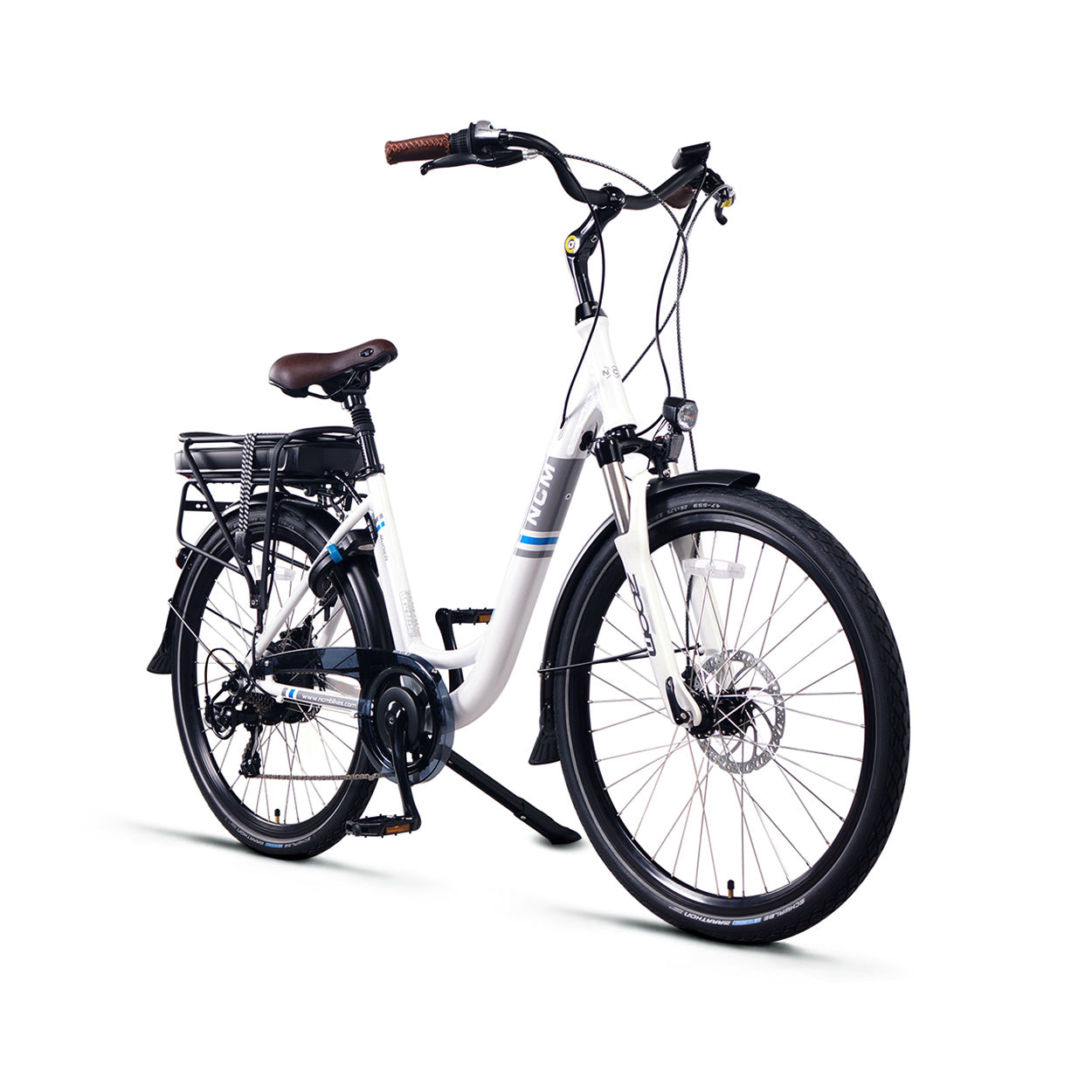

NCM Munich
$1,299.00 CAD
Shipping calculated at checkout.
Battery：36V 13Ah, 576Wh
Range： up to 90 km
Have a question?
NCM Munich
Up to
32km/h
Up to
90km
X15 36V
350W
576W
H36V 13AH
Das-Kit
L6T
Das-Kit
36V 2A
Max torque
55Nm
Net weight
22.95 kg
Stay safe with reputable Tektro disc brakes

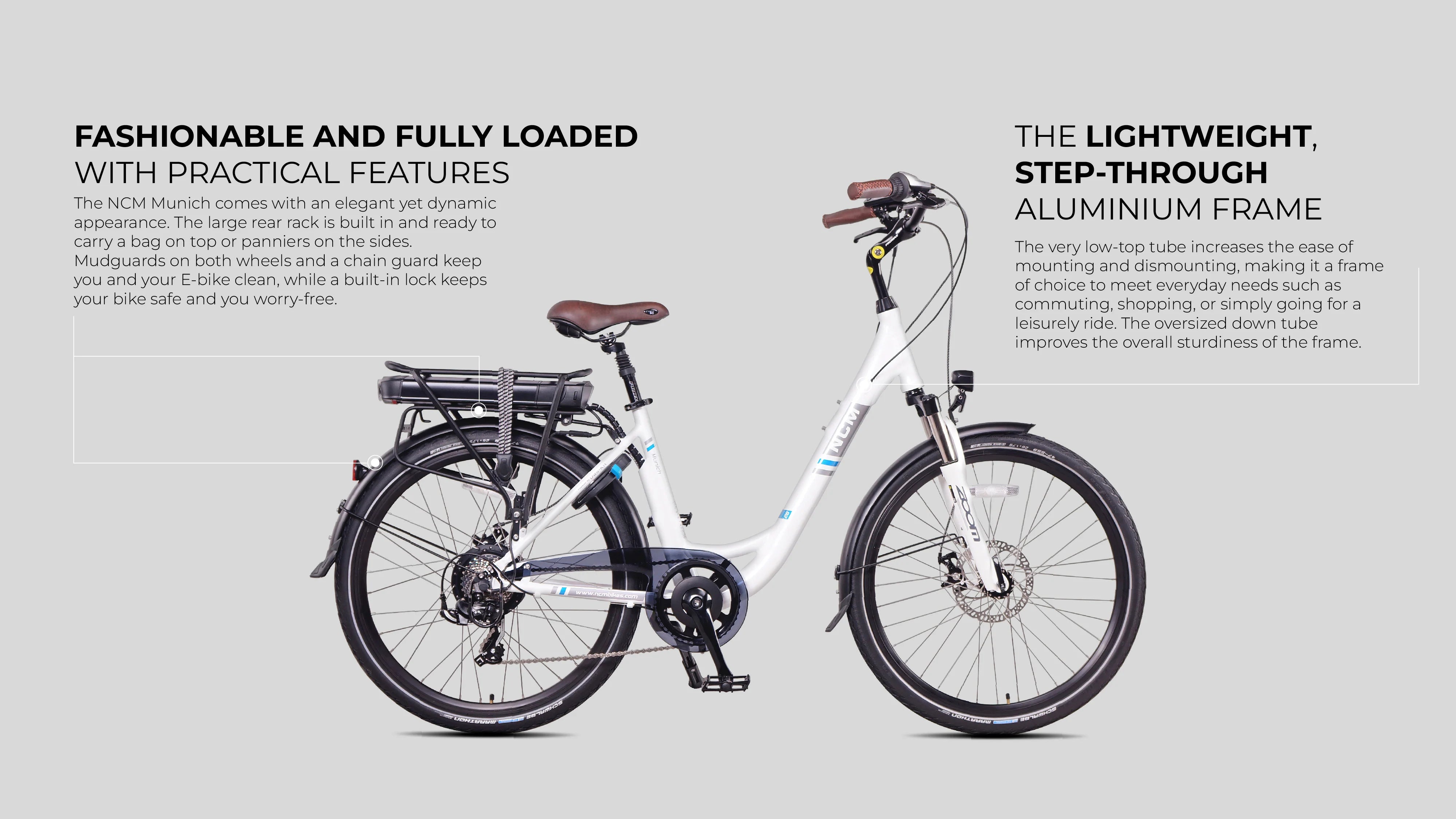

Fashionable and fully loaded with practical features
An electric system that will keep you going without breaking a sweat
SIZES GEOMETRY
SPECIFICATION
| Bike Components |
| Frame | Alu. 6061, 26” 440MM |
| Suspension Fork | ZOOM 187D |
| Brake | F/R: Mechanical TektroDisc Brakes, MD-280 |
| Freewheel | 7-speed, 14-28T, Silver |
| Tire | Schwalbe, Marathon 26"*1.75, Black |
| Saddle | Selle Royal, FREEWAY, Brown |
| Stem | Promax, MQ-527, adjustable |
| Crank | TL, ICA170ABlack, 44T, Black |
| Shifter | Shimano, Tourney, SL-RS45-7R, 7-Speed, Silver |
| Derailleur | Shimano, Tourney, TY500, 7-Speed |
| Electric Components |
| Battery | Das-Kit, R3S-3613, 36V 13AH, 576Wh, with USB port |
| Motor | Das-Kit, X15, Rear drive motor, 36V350W |
| Controller | Das-Kit, CT4, 36V 14A |
| Charger | Das-Kit, 36V2A |
| Display | Das-Kit, L6T |
| Front Light | Spanninga, Kendo, 36V, 30 Lux |
| Rear Light | Spanninga, Lineo, Integrated with battery |
| Weight |
| Net Weight (with battery) | 22.95kg |
| Battery Weight | 3.55kg |
| Total Weight (driver+bike) | 140kg |
