NCM M7

BRAND NEW
NCM M7

An e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their ebike can handle whatever they throw at it.

COMPARE THIS BIKE In comparison

Up to
45km/h

Up to
200km

X15 48V
750W

912WH
48V 19AH

Torque
Sensor

Das-Kit
C8

Das-Kit
48V 3A

Max torque
70Nm

SIZES GEOMETRY

SIZE GUIDE

SUPPORT DOWNLOAD

NCM CATALOGUE

SPECIFICATION

Bike Components
Frame
Alu. 6061, 27.5"*19 inches
Suspension Fork		 Suntour, XCM-HLO-27.5, with hydraulic lock system
Brake		 F/R: Das-Kit Hydraulic Disc Brakes, DK-100，F: 180mm rotor R: 180mm rotor
Freewheel
LY, 8 Speed, 11-32T, Silver
Tire
Schwalbe, Smart Sam, 27.5"*2.35, Black

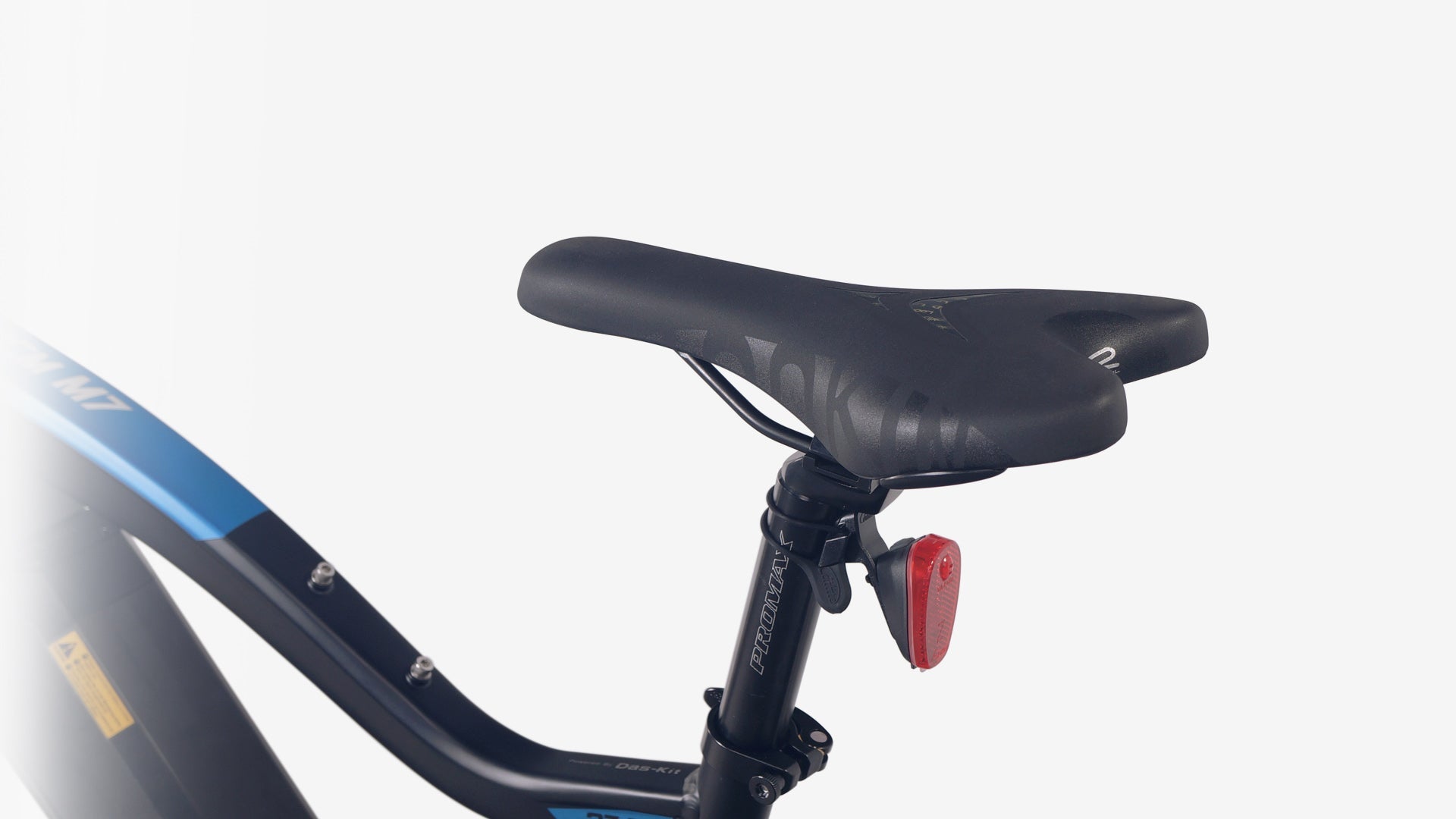

Saddle
Selle Royal, Lookin-A200UR, Black
Stem
Promax, Alu.MA-471
Crank		 Das-Kit, 52T
Shifter Shimano, Altus, R: SL-M315-8R, 8 Speed, BK
Rear Derailleur Shimano, Acera, RD-M360
Chain
KMC, Z8.3RB, Silver
Electric Components
Battery
Das-Kit, i7-4819, 48V 19AH, 912WH

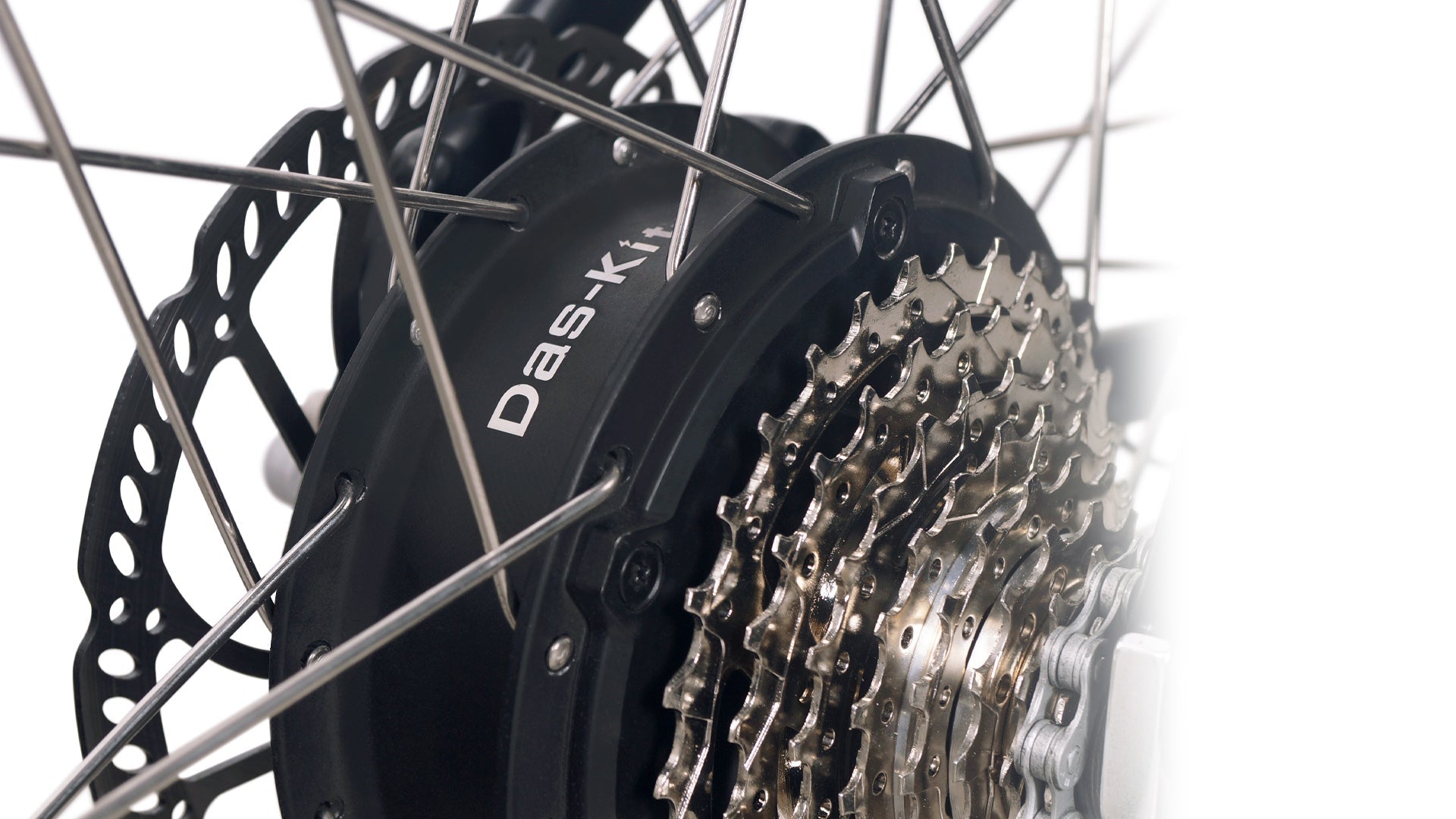

Motor
Das-Kit, X16, Rear drive motor, 48V 500W, 32KM/H
Controller
Das-Kit, T7+, 48V 22A
Charger
Das Kit, 48V3A
Display
Das-Kit, C8, with USB
Front Light
DH007Plus, 48V, 70Lux
Weight
Net Weight (with battery) 23kg
Battery Weight		 4.8kg
Total Weight (driver+bike) 125kg

Suitable for riders 170cm+

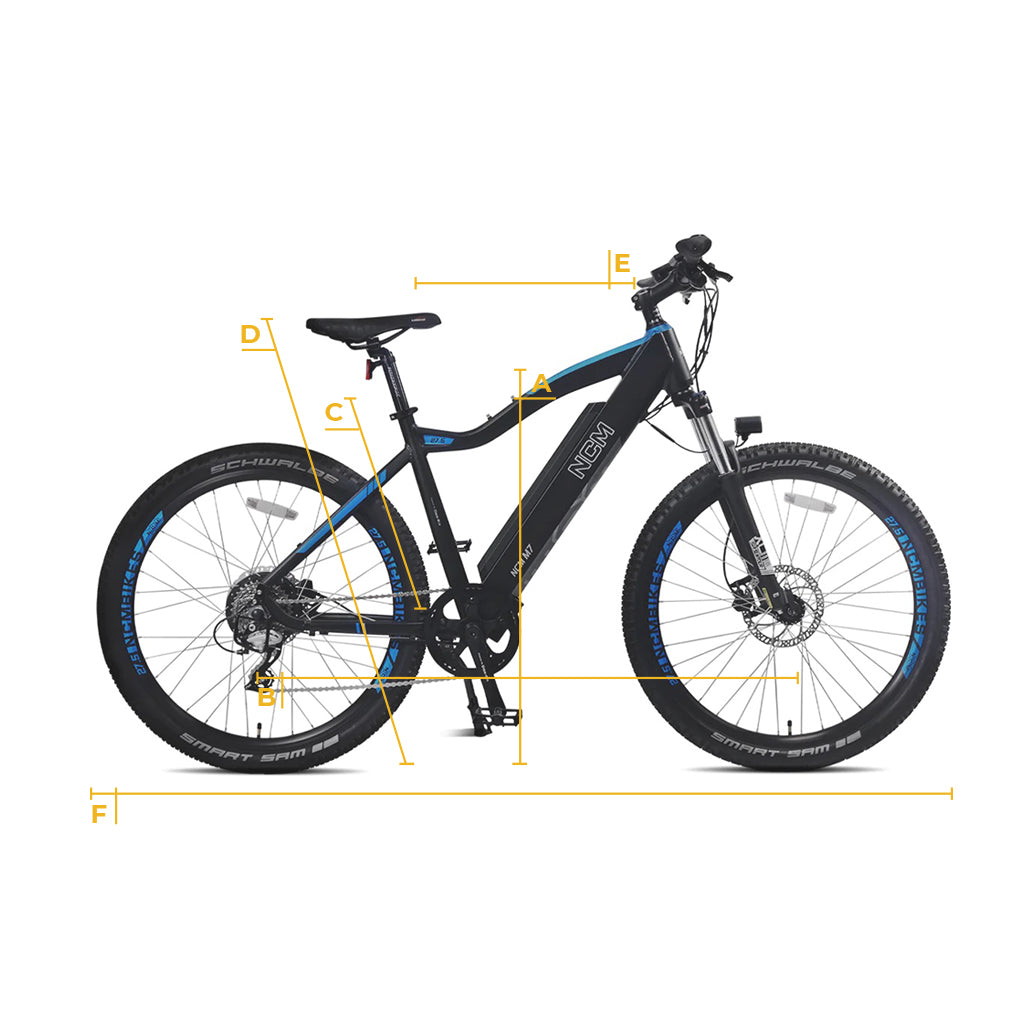

Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you.

27.5"
A Stand over height
82 cm
B. Wheel base
110 cm
C. Frame Size
48 cm
D. Min/Max seat height
87-105 cm
E. Reach
39.8 cm
F. Overall length
181.3 cm
Recommended Height
170 - 185 cm
