Sale
- Sku: 9008210012
NCM Cru7s
$2,499.00 CAD
$2,249.00 CAD
Shipping calculated at checkout.
In stock!
Have a question?
NCM Cru7s
Up to
32km/h
Up to
64km
X15 48V
750W
912WH
48V 19AH
Torque
Sensor
Das-Kit
C8
Das-Kit
48V 4A
Max torque
70Nm
SPECIFICATION
| Bike Components |
| Frame | Alu. 6061, 26"x480mm |
| Suspension Fork | RST, NEON-TNL-26, with hydraulic lock system |
| Brakes |
F: Das-Kit, hydraulic disc brake, DK-100E, 180mm rotor R: Das-Kit, hydraulic disc brake, DK-100, 180mm rotor |
| Chain | KMC, Z8.3RB, Silver |
| Freewheel | LY, 8 Speed, 11-32T |
| Tire | CST, C1779 |
| Saddle | Selle Royal, Justek: 6534 UEN, Brown |
| Stem | Promax, MQ 579 |
| Crank | Das-Kit, 46T |
| Shifter | Shimano, Tourney, SL-RS45-8R, 8 Speed |
| Rear Derailleur | Shimano, Acera, RD-M360 |
| Electric Components |
| Battery | Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology |
| Motor | Das-Kit, X15, rear drive motor, 48V 500W, 32KM/H |
| Controller | Das-Kit, T7, 48V 18A |
| Charger | Das-Kit, 48V3A |
| Display | Das-Kit, C8 with USB |
| Front Light | DH006, 48V, 25 Lux |
| Rear Light | DR009,48V |
| Weight |
| Net Weight (with battery) | 24.9kg |
| Battery Weight | 4.8kg |
| Total Weight (driver+bike) | 140kg |
Suitable for riders 160cm+ |

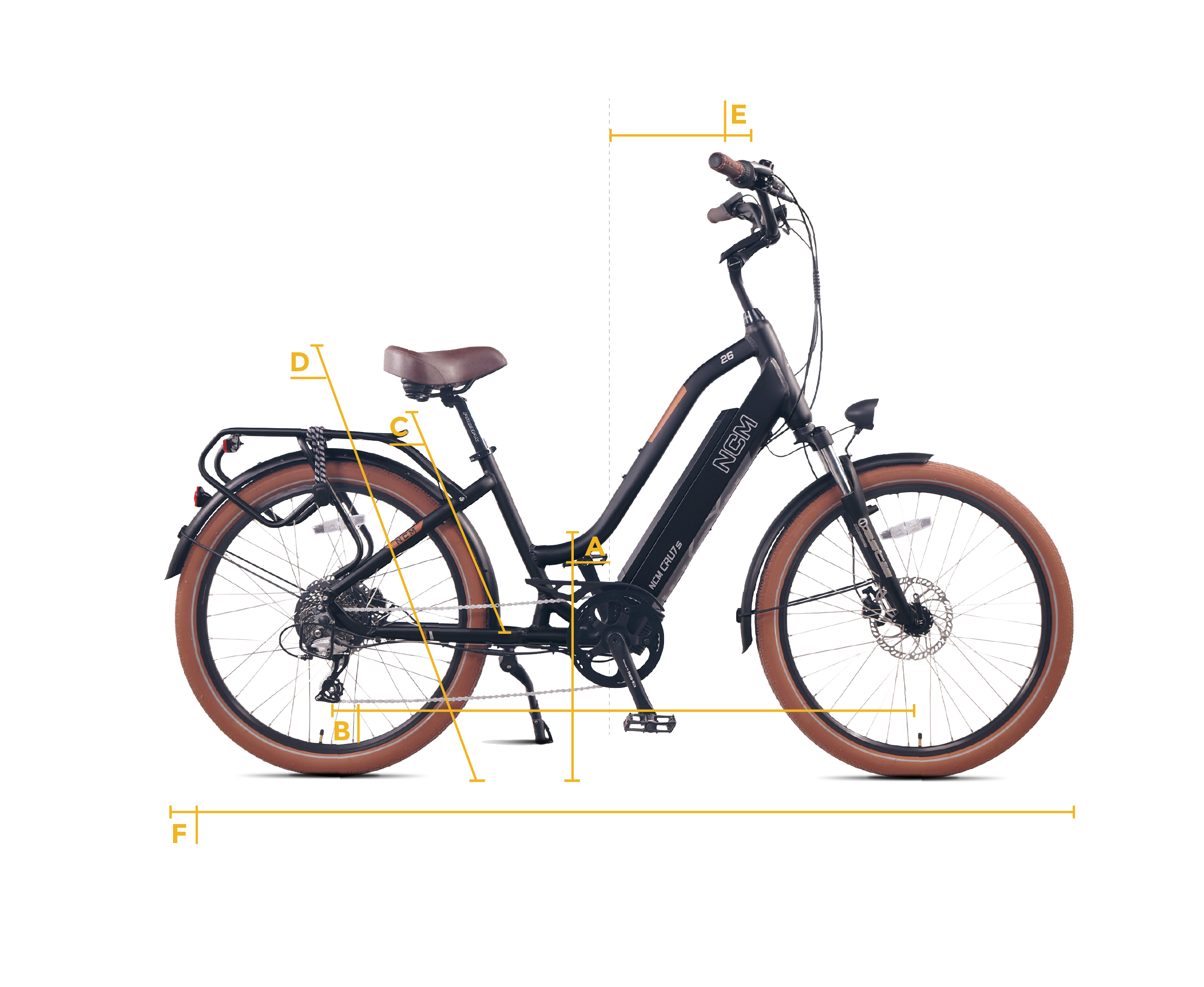

| Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
26" |
|
| A Stand over height | 50.4 cm |
| B. Wheel base | 122.5 cm |
| C. Frame Size | 48 cm |
| D. Min/Max seat height | 77.6-97.8 cm |
| E. Reach | 29.5 cm |
| F. Overall length | 189.5 cm |
 Recommended Height
|
160 - 185 cm |
