Sale
- Sku: 9008210039
NCM C7
$1,599.00 CAD
$1,119.00 CAD
Shipping calculated at checkout.
In stock!
Have a question?

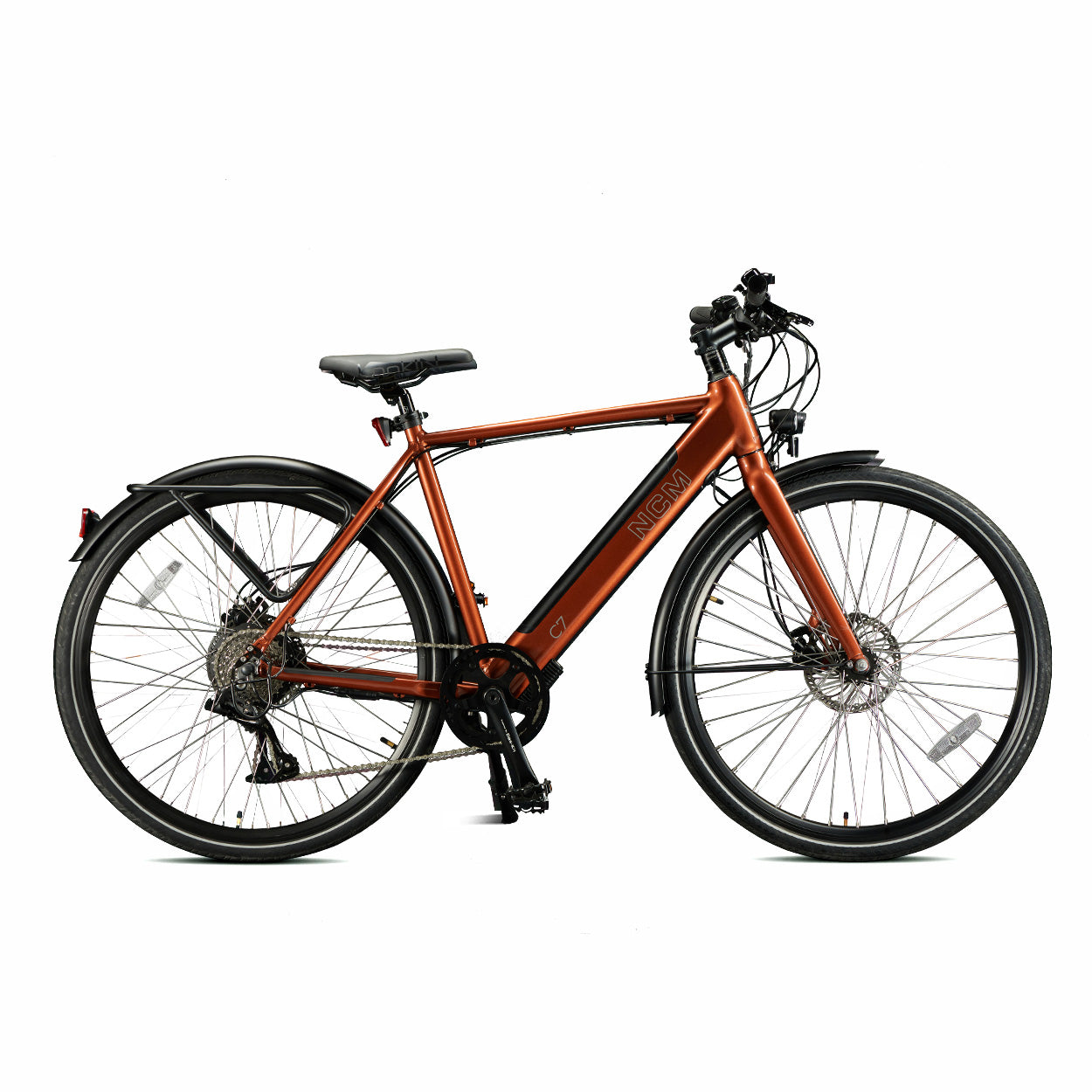

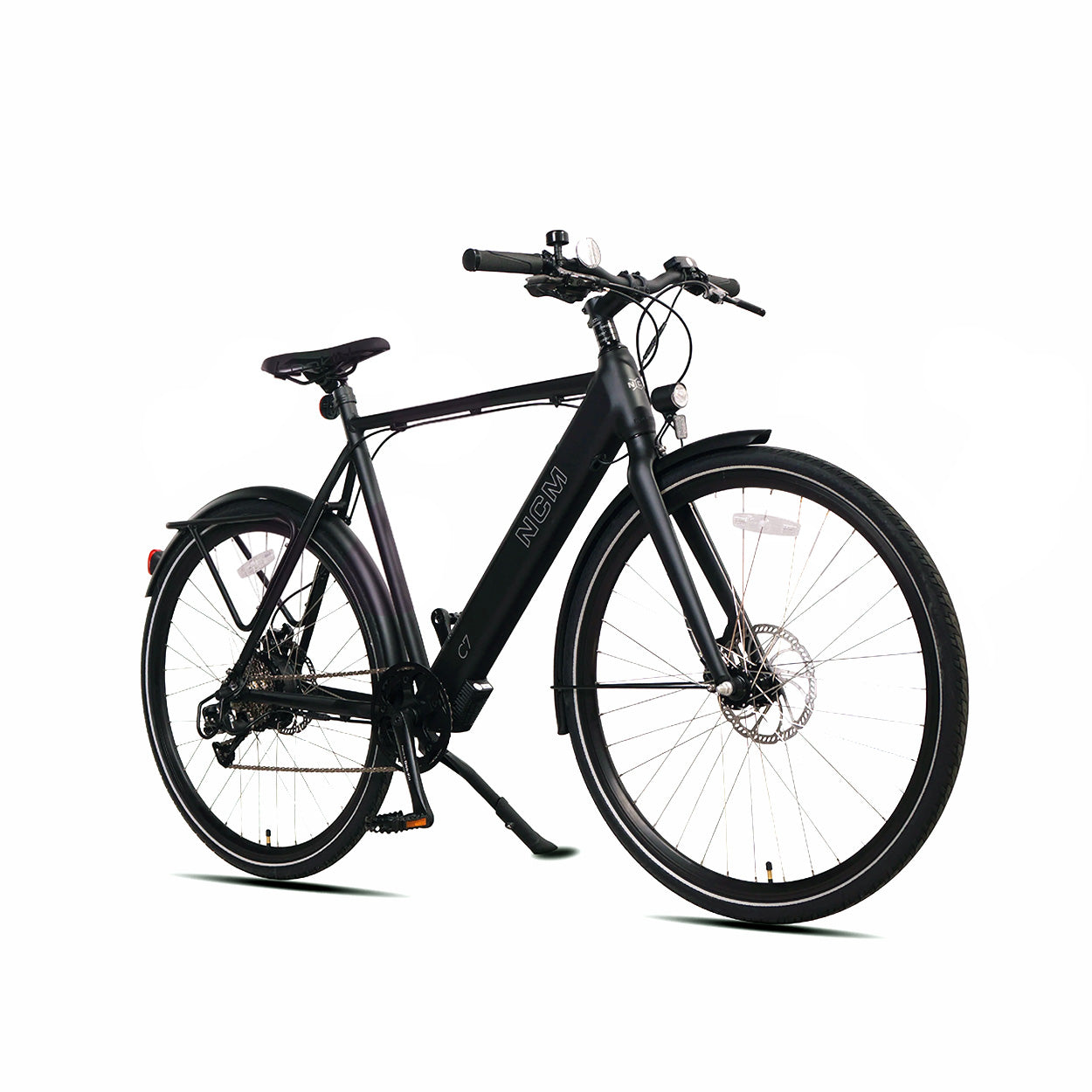

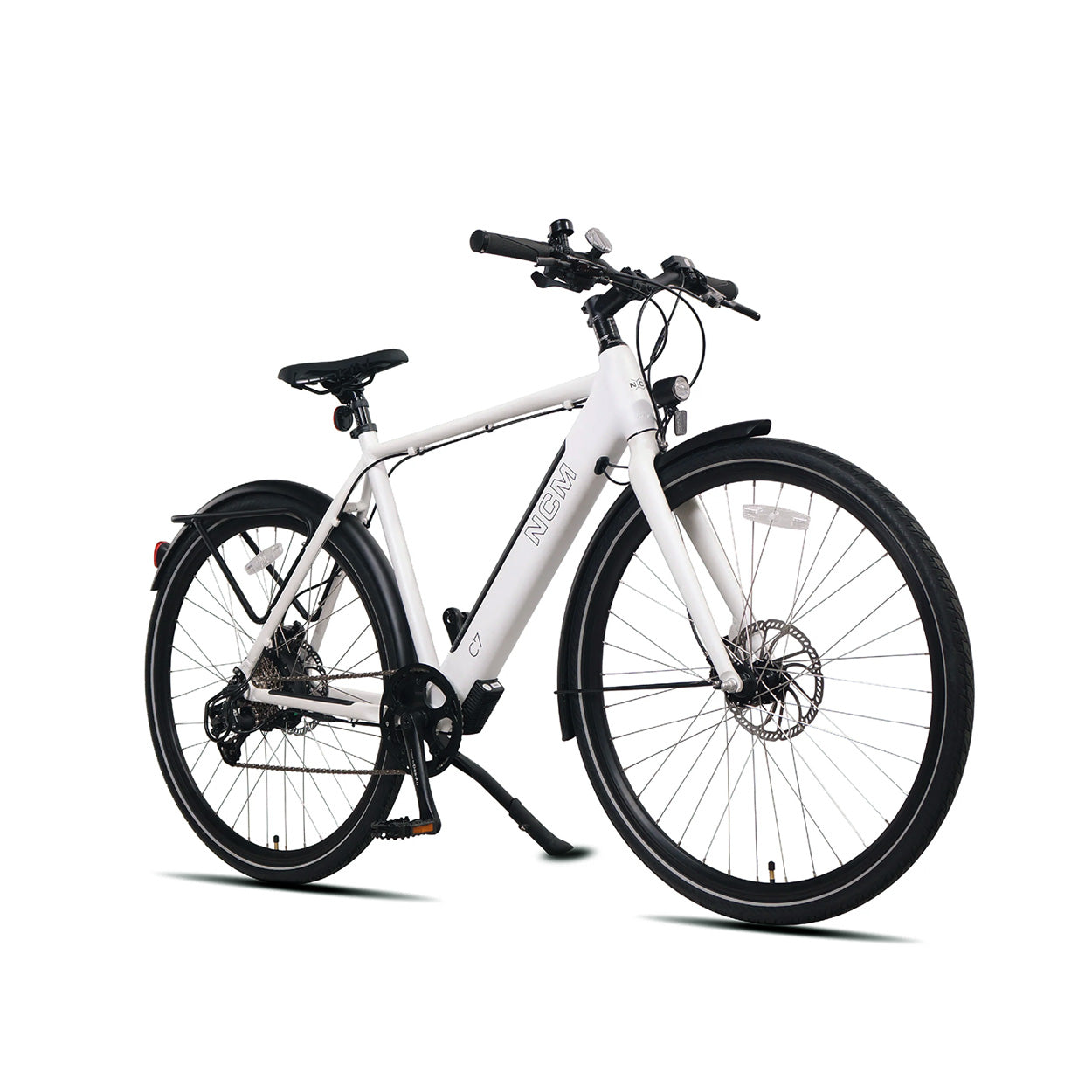

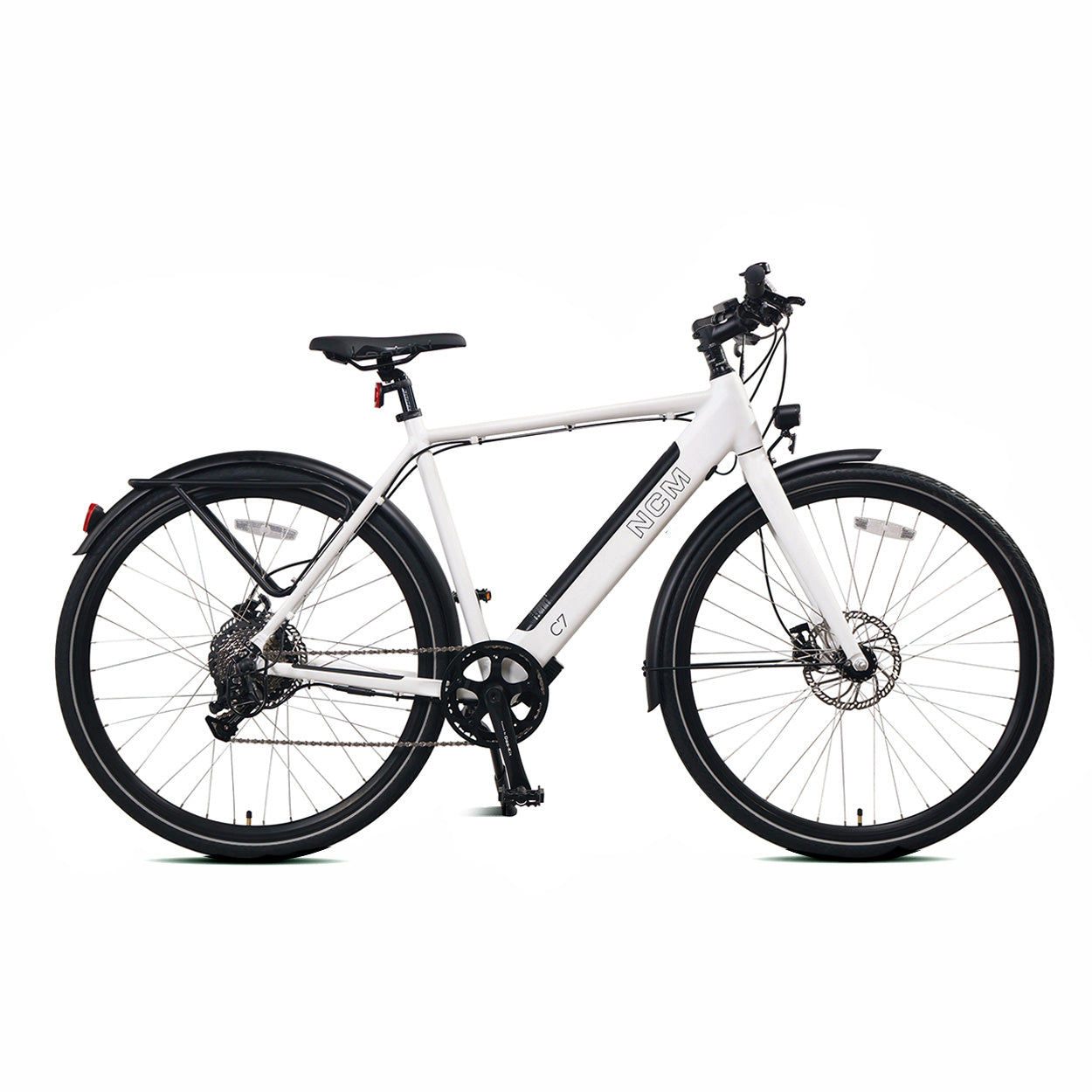

NCM C7
Up to
32km/h
Up to
80km
X2 36V
350W
504WH
36V 14AH
Torque
Sensor
Das-Kit
E2
Das-Kit
36V 3A
Max torque
50Nm
SPECIFICATION
| Bike Components |

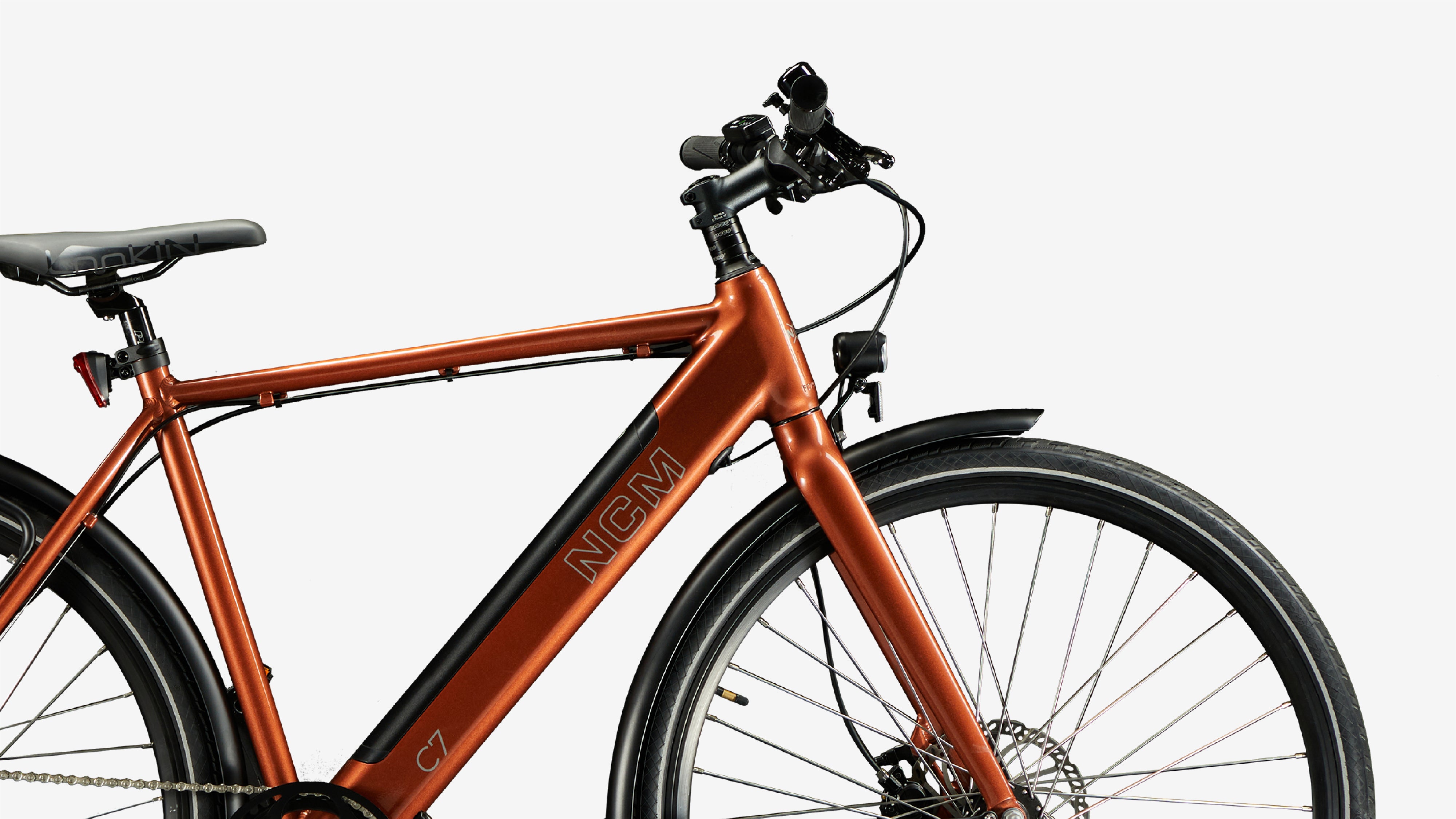

| Frame | Alu. 6061, M: 20.5 inches, L: 22.8 inches |
| Suspension Fork | ZF, 5058-01 |
| Brake | Hydraulic disc brake |
| Freewheel | LY, 8 Speed, 11-32T |
| Tire | CST, C-1953 |

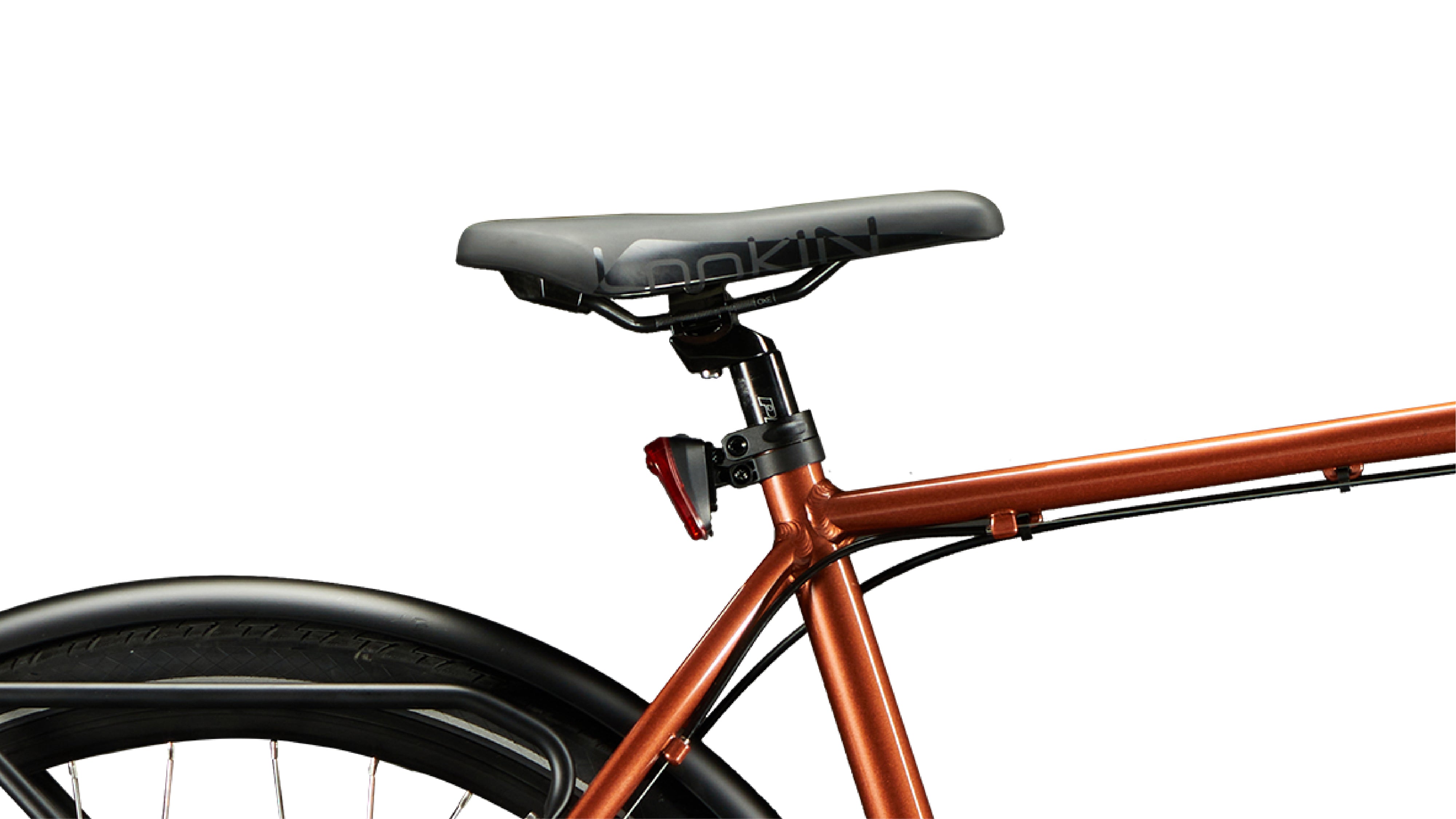

| Saddle | Selle Royal, A236URN |
| Stem | HP-HD75-8 |
| Crank | Das-Kit, 42T |
| Chain | KMC, Z51 |
| Shifter | LT-8 Speed |
| Derailleur | LT-8 Speed |
| Electric Components |
| Battery | Das-Kit, i6-3614, 36V14AH, 504WH |

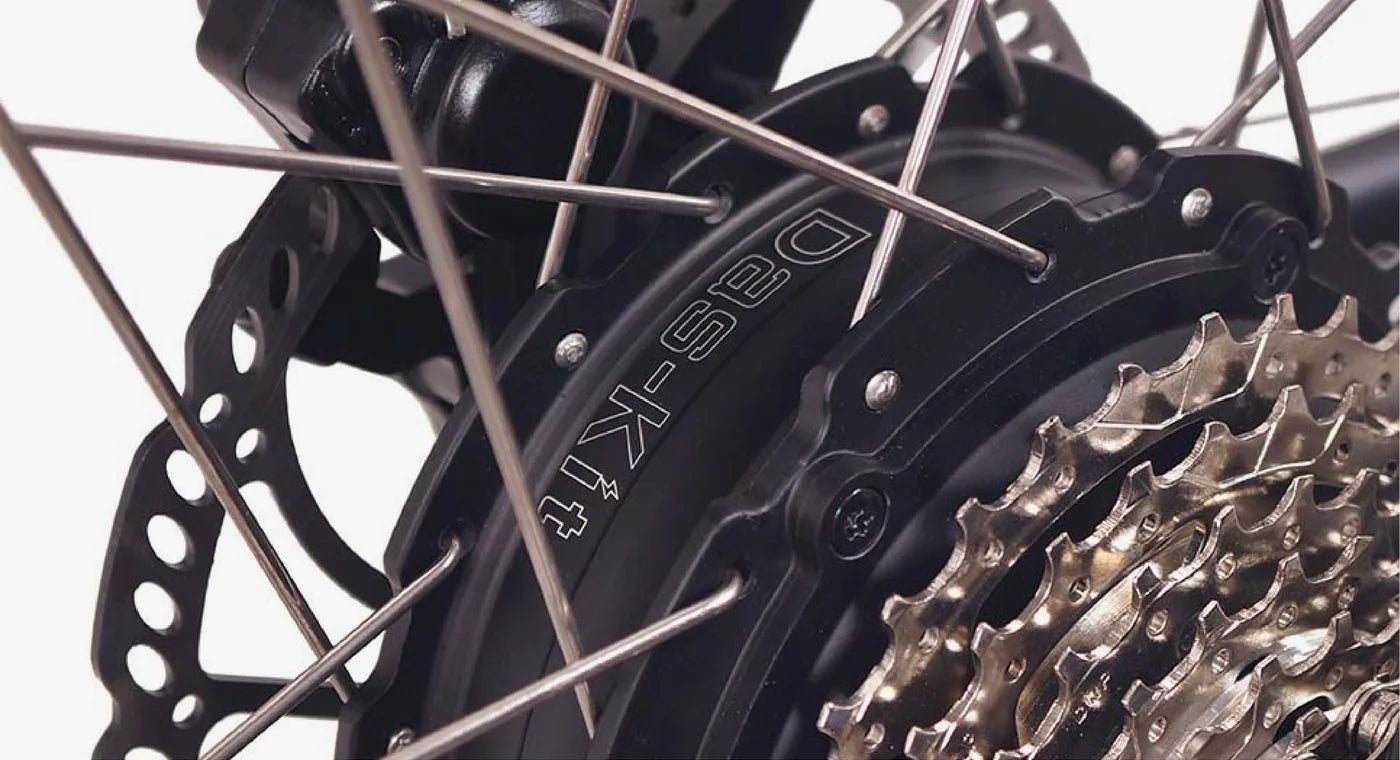

| Motor | Das-Kit, X2, Rear drive motor, 36V 350W, 32KM/H |
| Controller | Das-Kit, T6, 36V15A |
| Charger | Das-Kit, 36V3A |

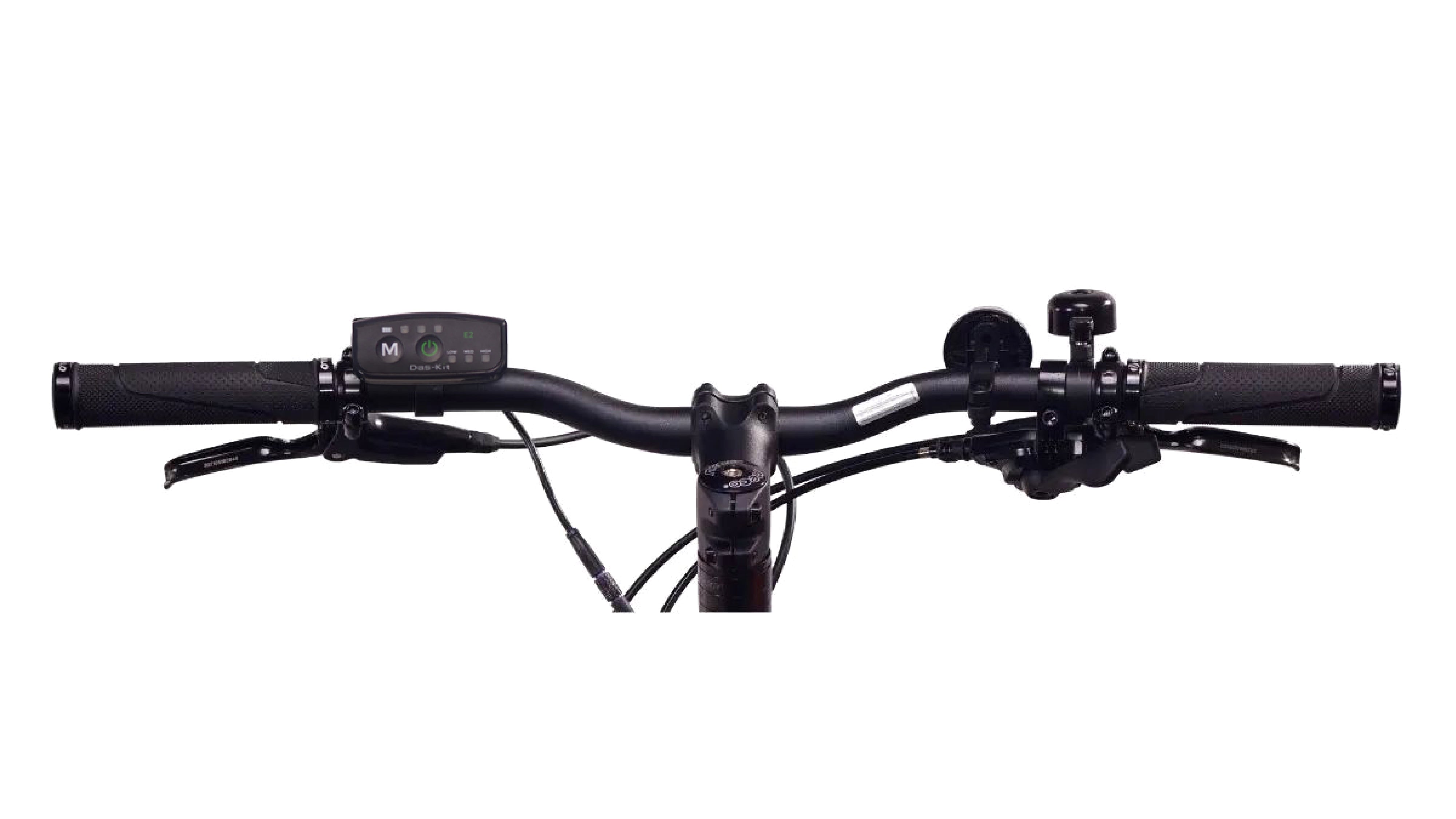

| Display | Das-Kit E2 |
| Front Light | DH002E, 40 Lux |
| Rear Light | DR004B |
| Weight |
| Net Weight (with battery) | 21.8kg |
| Battery Weight | 2.7kg |
| Total Weight (driver+bike) | 124.7kg |
Suitable for riders 160cm+ |

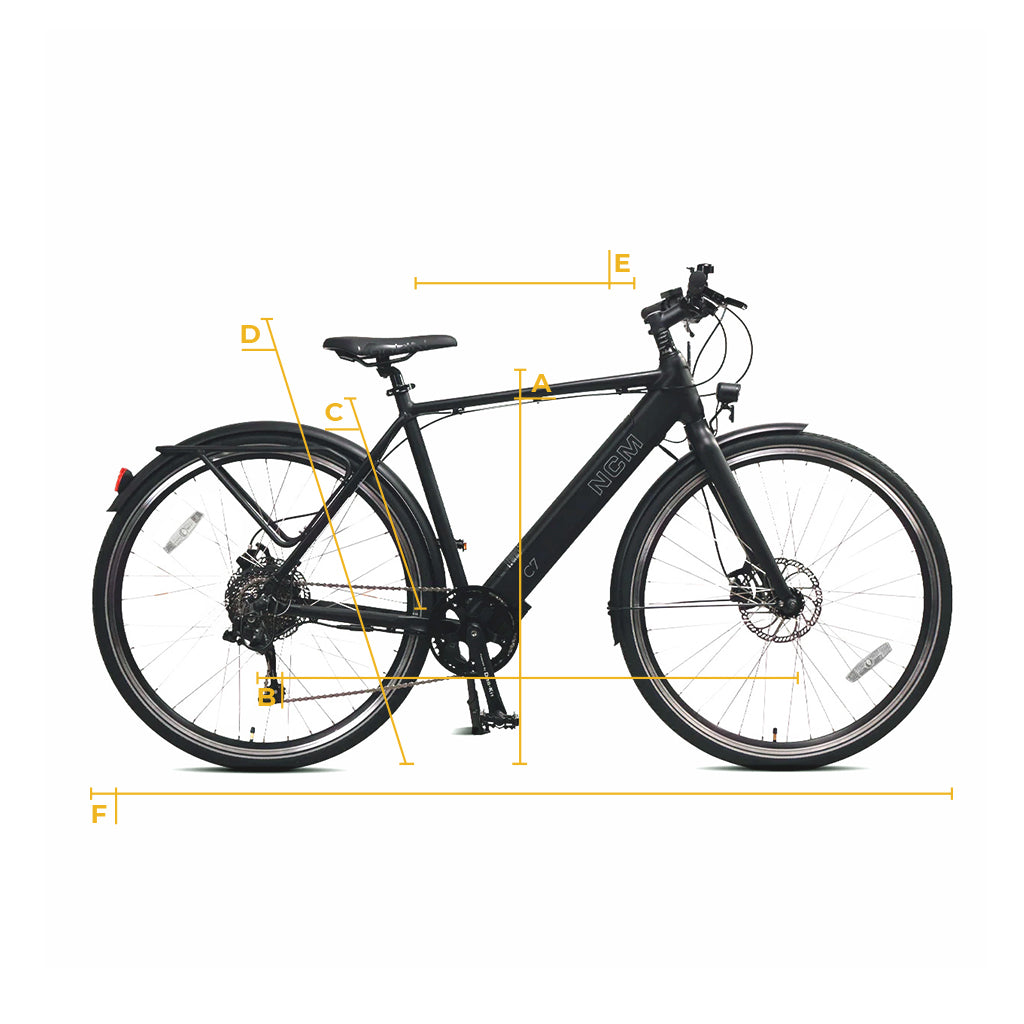

| Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
M |
L |
|
| A Stand over height | 80 cm | 83.5 cm |
| B. Wheel base | 106 cm | 108 cm |
| C. Frame Size | 52 cm | 58 cm |
| D. Min/Max seat height | 89-108 cm | 94-113 cm |
| E. Reach | 39 cm | 44 cm |
| F. Overall length | 180 cm | 180 cm |
 Recommended Height
|
170 - 185 cm | 180 - 195 cm |
