Sale
- Sku: 9008200014
NCM Aspen Plus
$2,099.00 CAD
$1,469.00 CAD
Shipping calculated at checkout.
In stock!
Have a question?

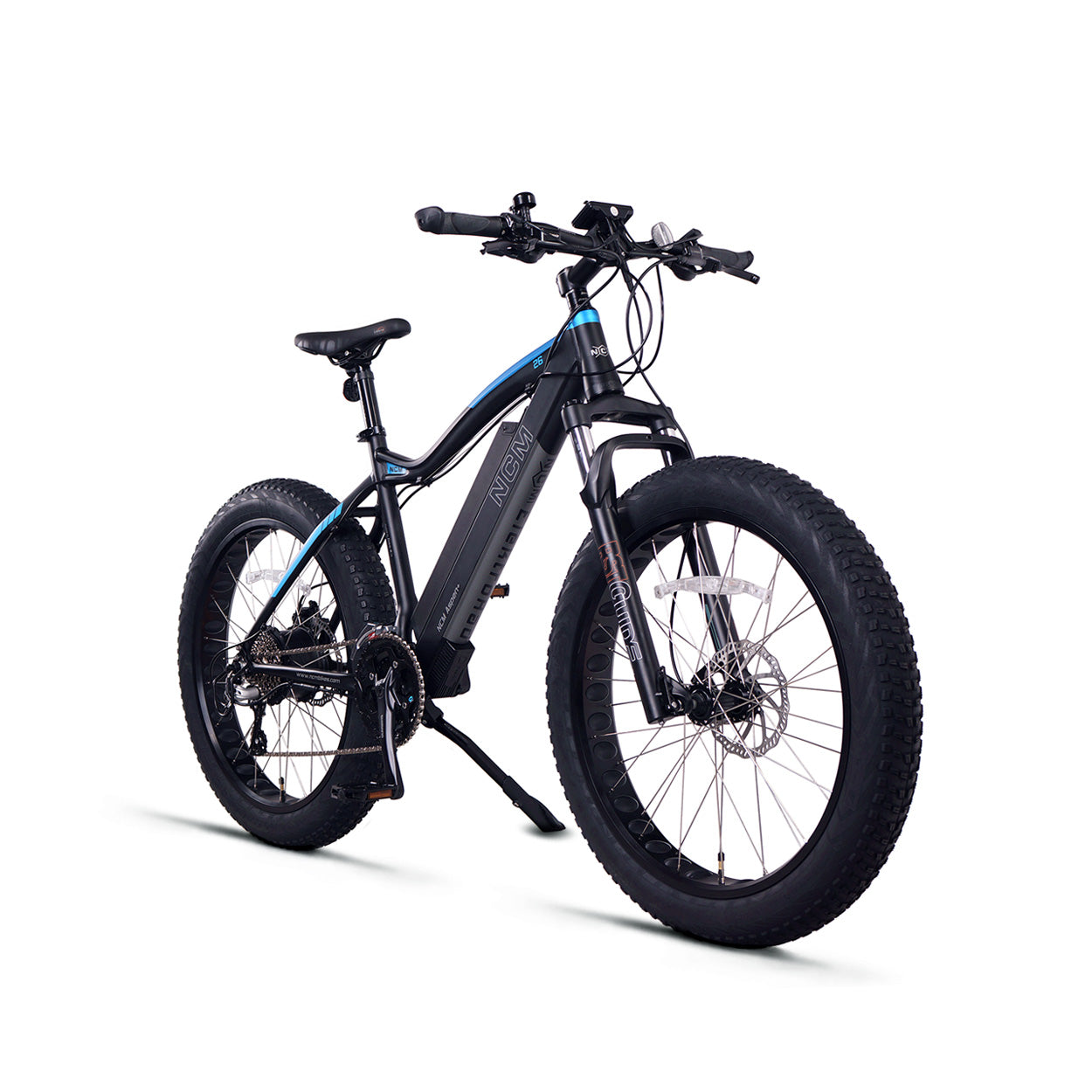

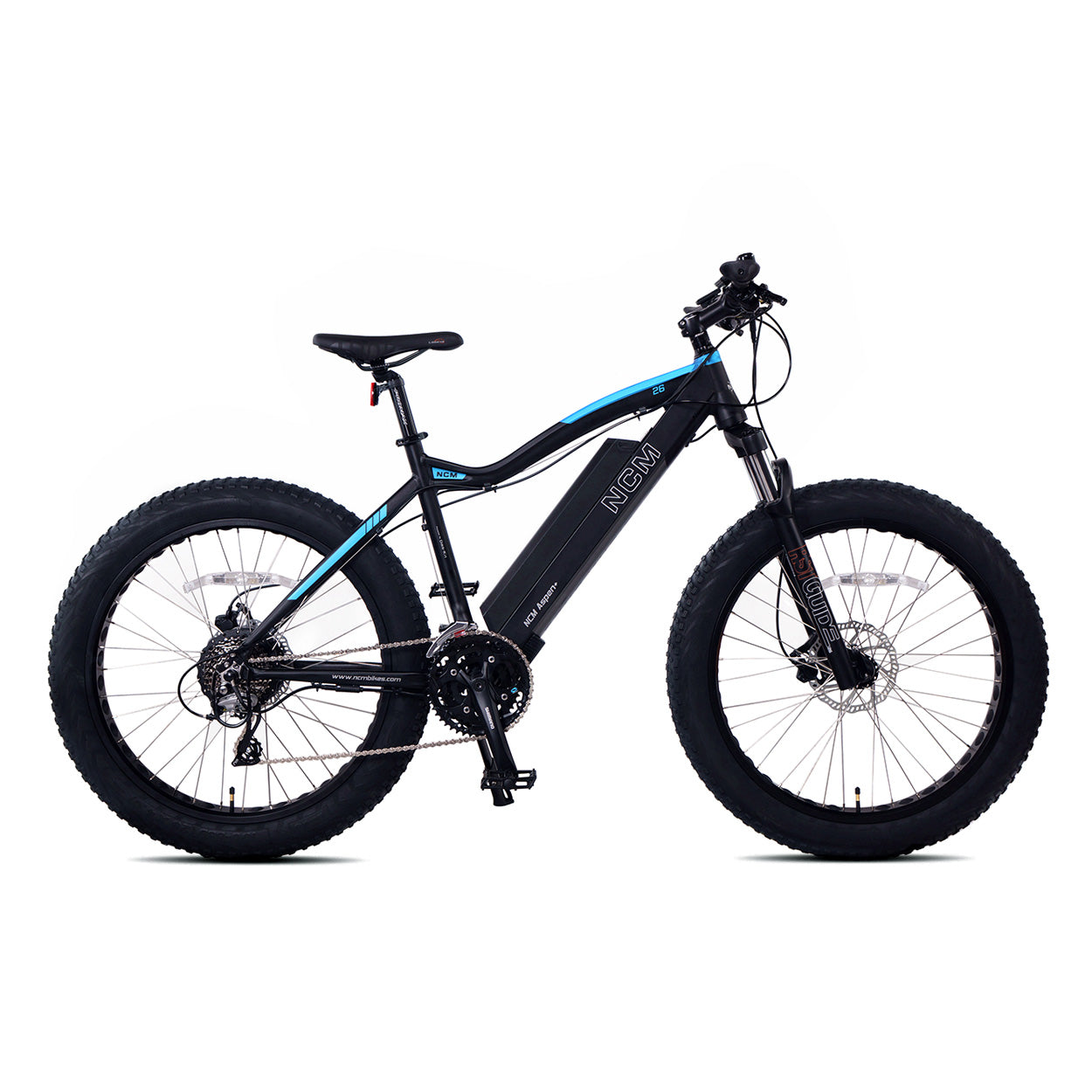

NCM Aspen Plus
Up to
32km/h
Up to
110km
X15F 48V750W
768WH
48V 16Ah
Cadense
Sensor
Das-Kit
L7
Das-Kit
48V 3A
Max torque
60Nm
SPECIFICATION
| Bike Components |
| Frame | Alu. 6061, 26"*18.9 inches |
| Suspension Fork | RST, Guid-T-26, Alu. with lock system |

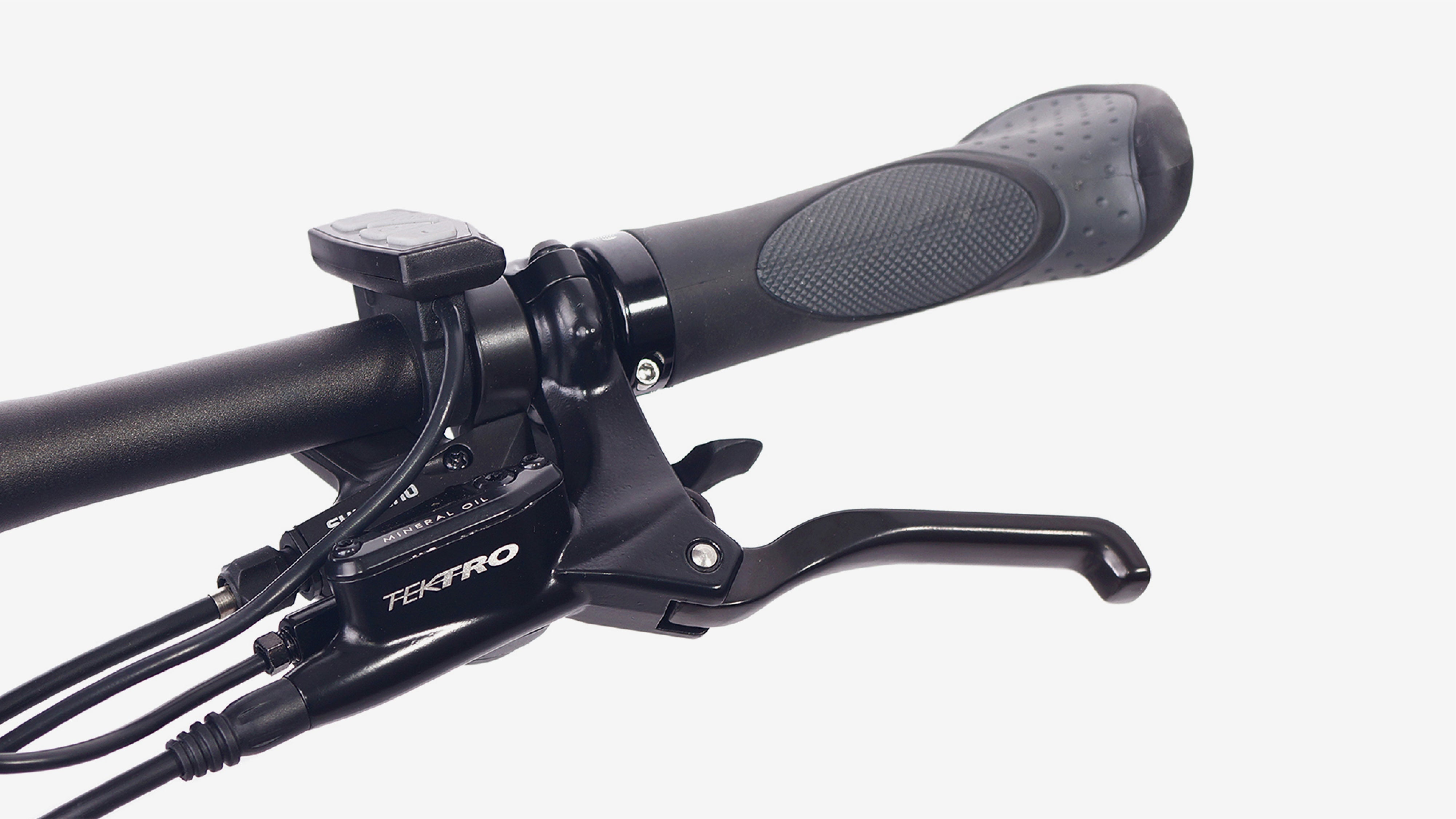

| Brake | F/R: Tektro Hydraulic Disc Brakes |
| Freewheel | 8 Speed, 11-32T, Sliver |
| Tire | CST, C1752, 26"*4.0, Black |
| Saddle | Selle Royal, LOOKIN, Black |
| Stem | Promax. Alu.MA-471, Ext 90mm |
| Crank | Shimano, Acrea, 28/38/48T |
| Shifter | Shiamno, Altus, F: M315-L, 3-Speed; R: M315-8R, 8-Speed |
| Front Derailleur | Shimano, Altus, M310, 3-Speed |

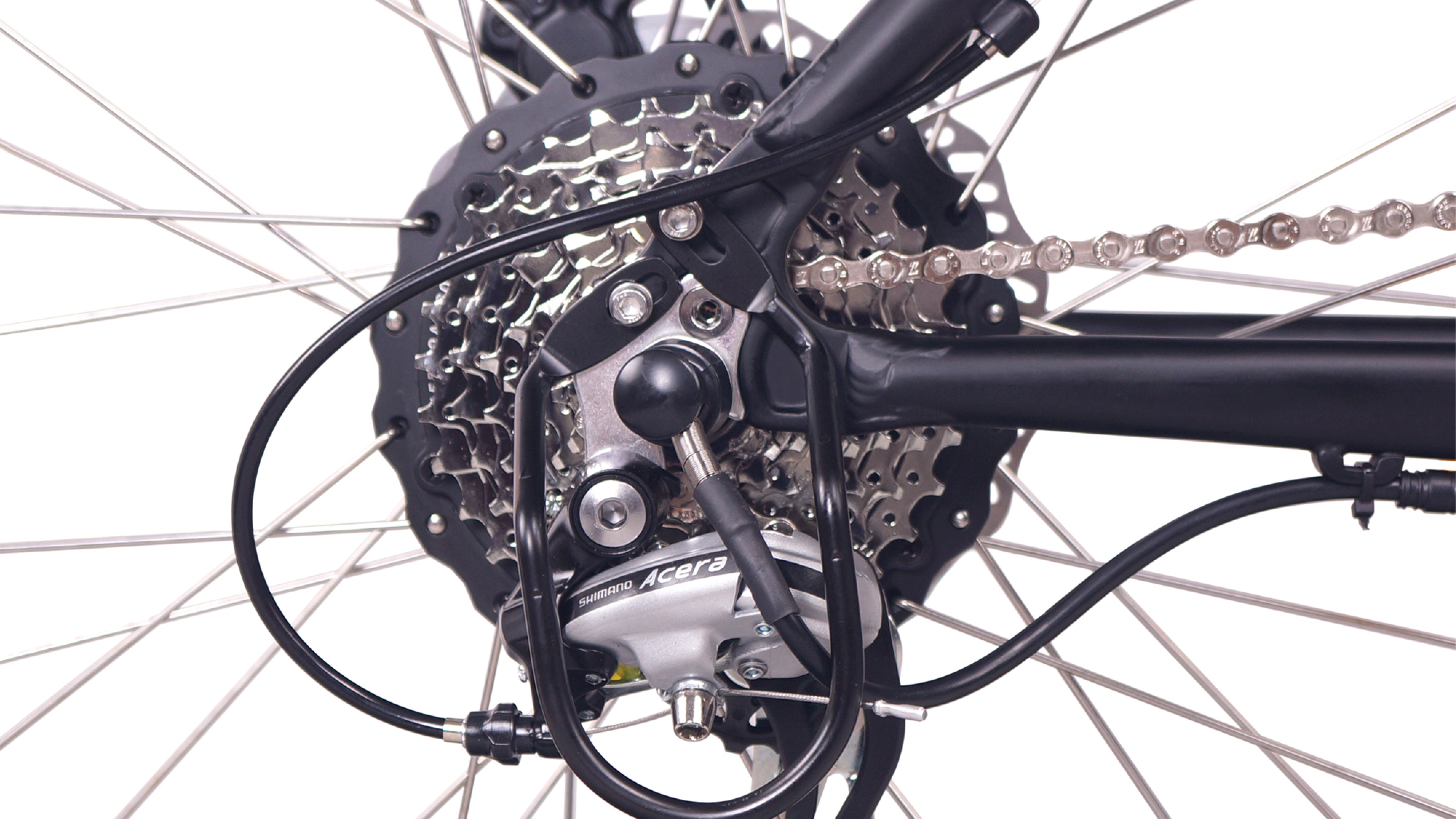

| Rear Derailleur | Shimano, Acera, M360, 8-Speed |
| Electric Components |
| Battery | Das-Kit, i5-4816, 48V 16AH, 768WH |
| Motor |
Das-Kit, X15F, 48V 500W / 750W, 32KM/H |
| Controller | Das-Kit, CT5-i5, 48V 18A |
| Charger | Das-Kit, 48V 3A, US standard |
| Display | Das-Kit, C7, 6 Levels |
| Front Light | Cateye, Front reflector |
| Rear Light | Cateye, Rear reflector |
| Weight |
| Net Weight (with battery) | 30kg |
| Battery Weight | 4.0kg |
| Total Weight (driver+bike) | 125kg |
Suitable for riders 160cm+ |

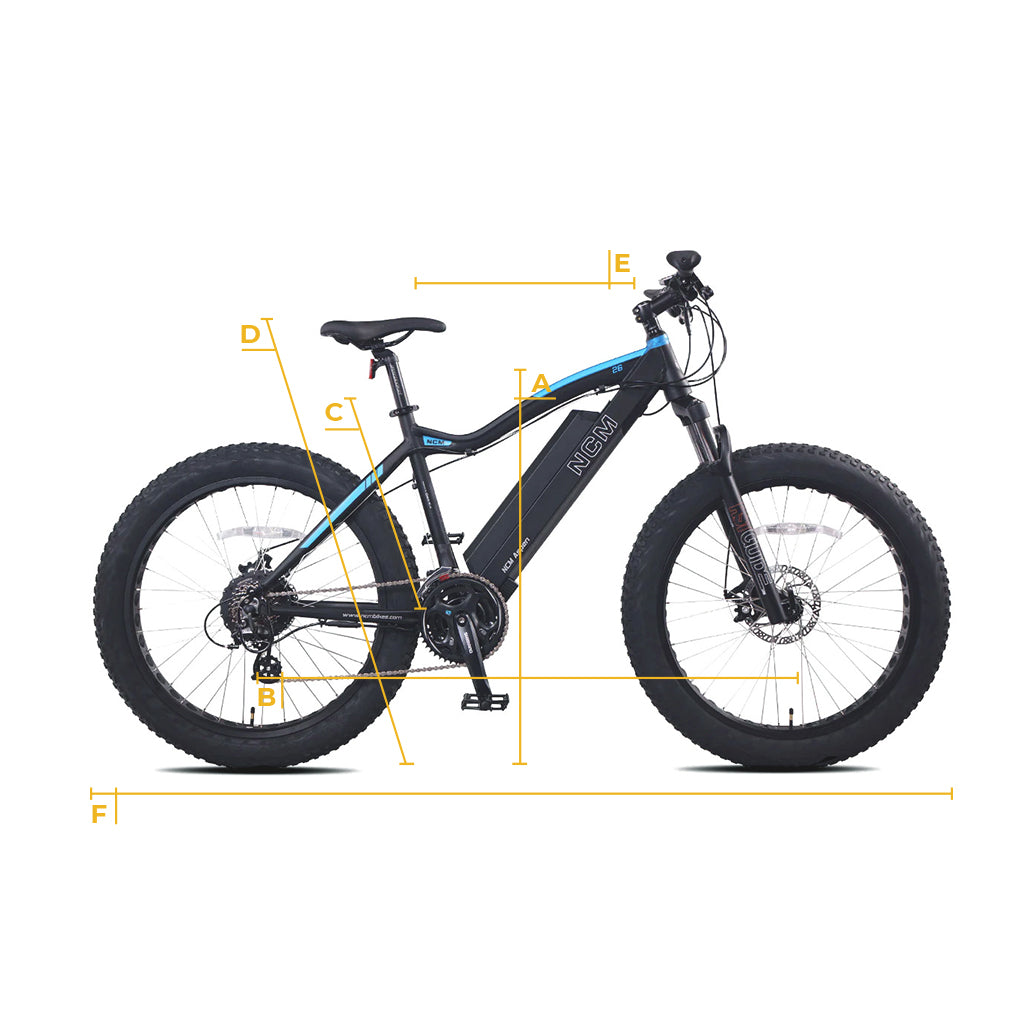

| Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
Aspen / Aspen Plus |
|
| A Stand over height | 81 cm |
| B. Wheel base | 117 cm |
| C. Frame Size | 48 cm |
| D. Min/Max seat height | 89-108 cm |
| E. Reach | 53 cm |
| F. Overall length | 183 cm |
 Recommended Height
|
160 - 185 cm |
