NCM T7s

BRAND NEW

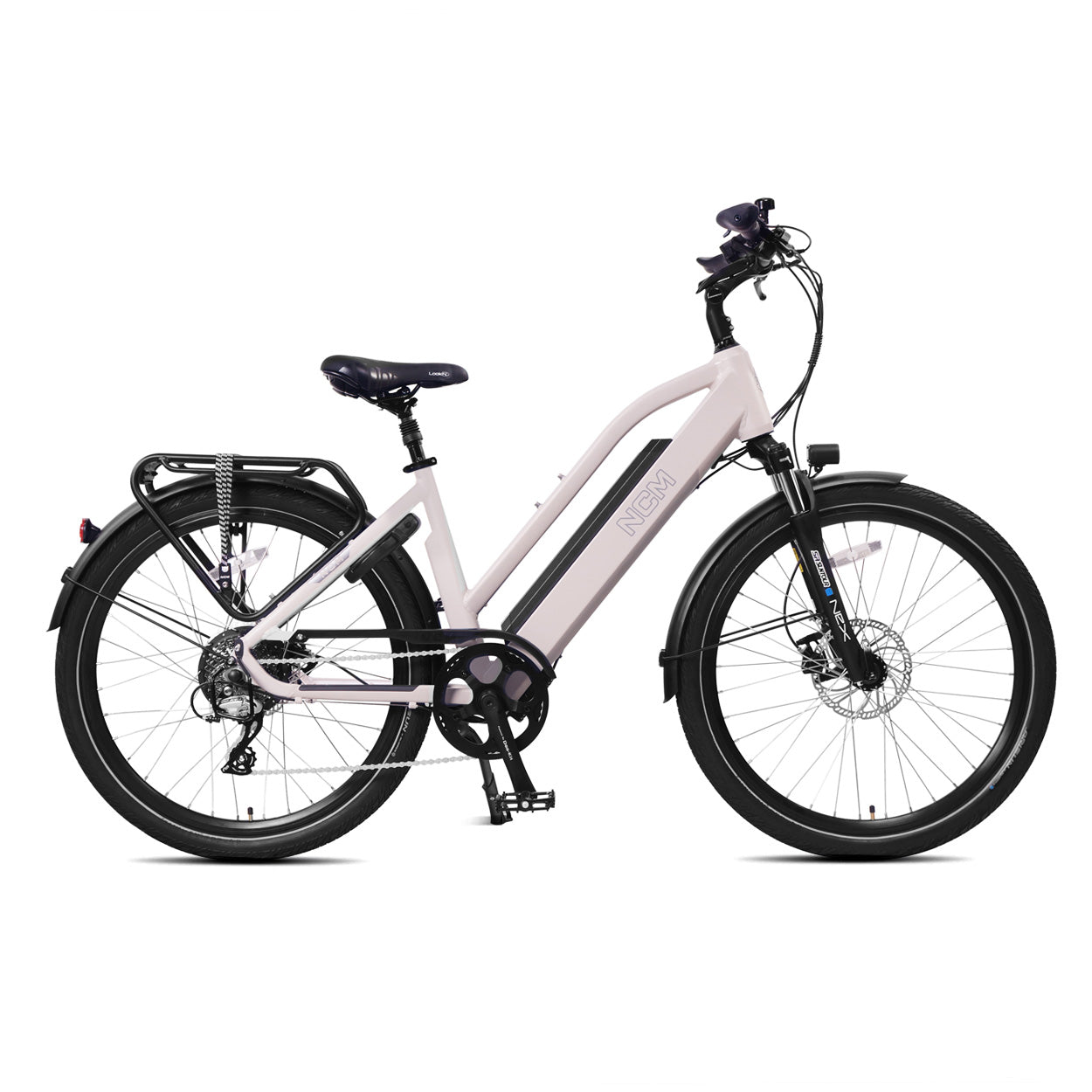

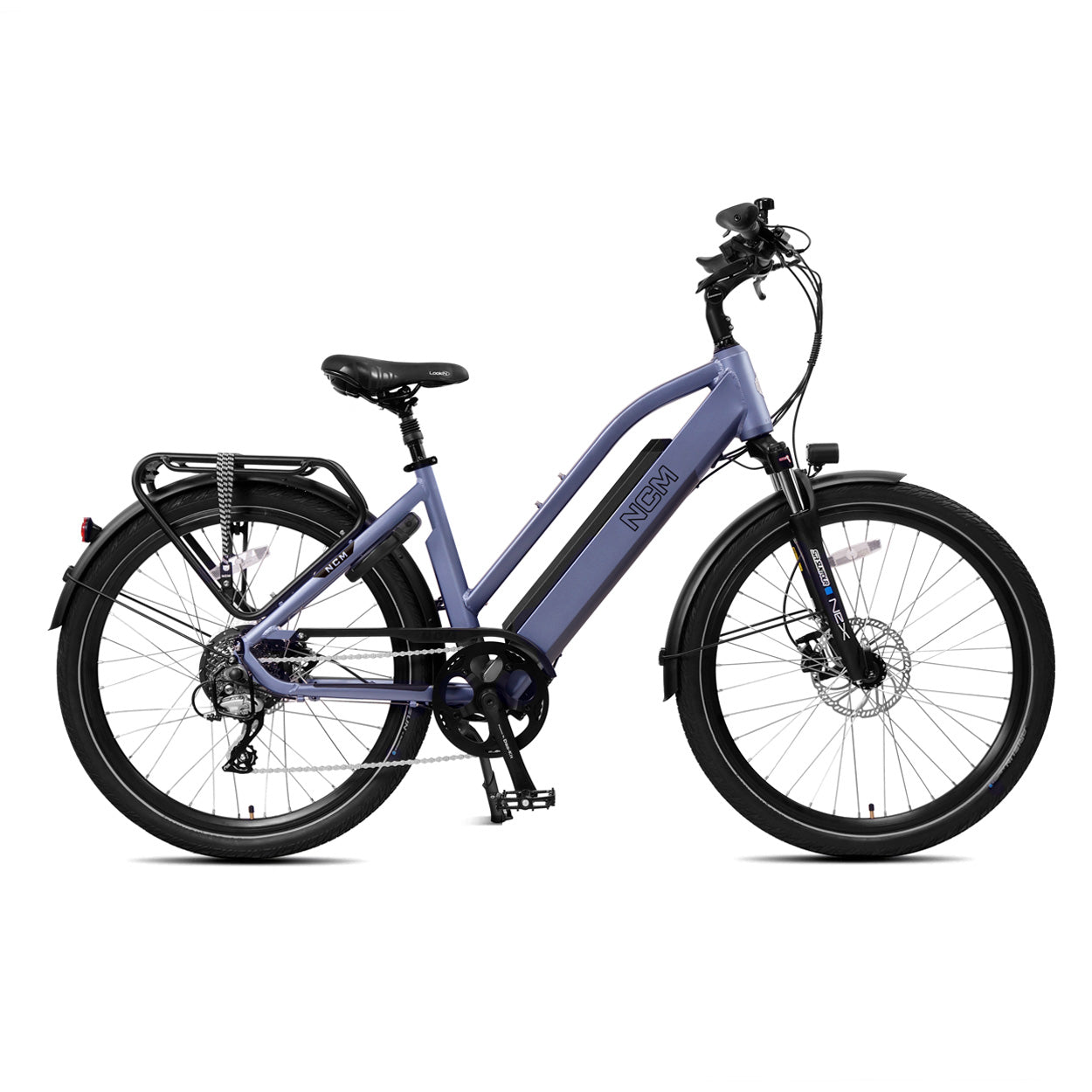

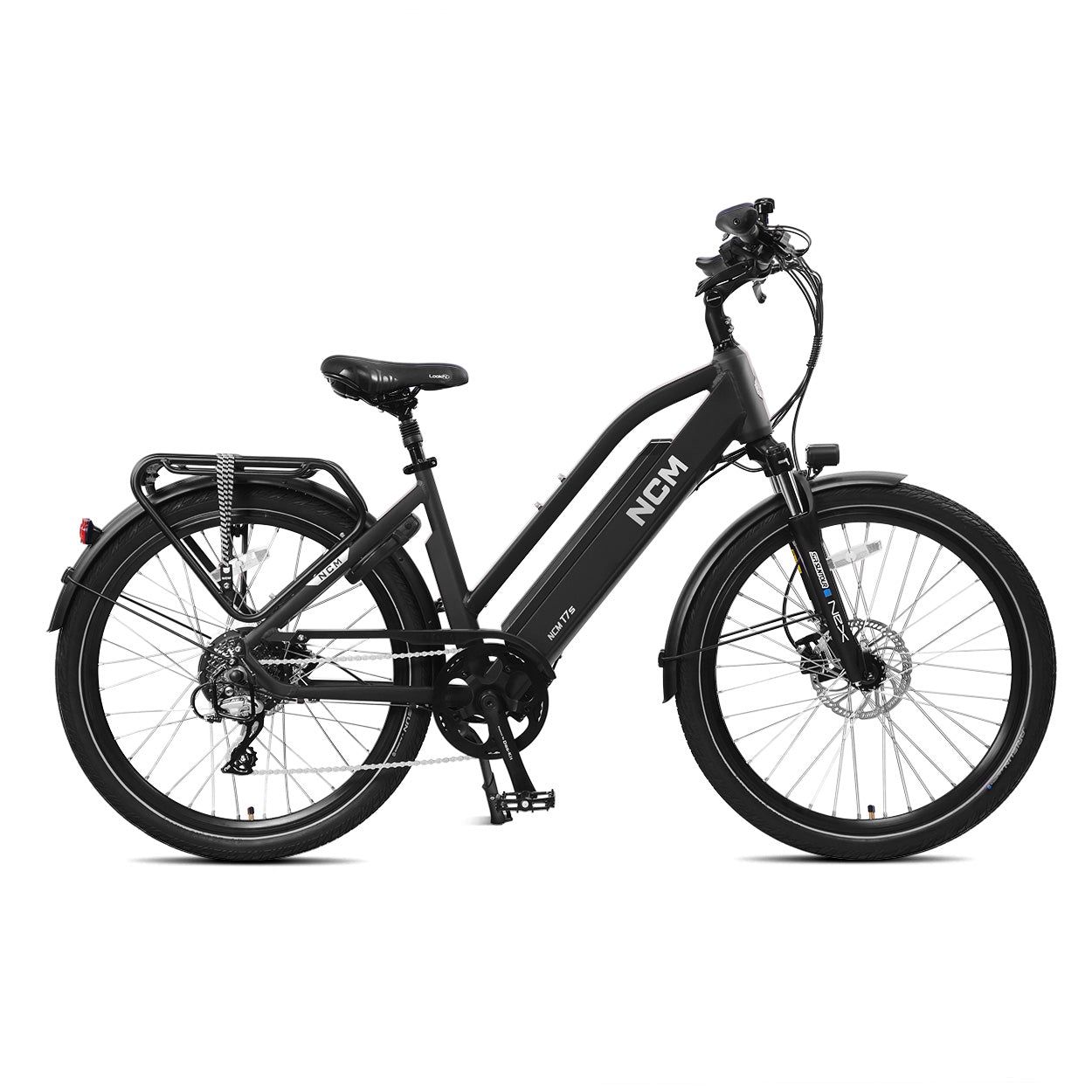

NCM T7s

Balancing accessibility with superior specifications, the NCM T7s is a step-through e-trekking bike for riders that are eager to tackle longer routes alongside their daily rides and want an ebike with the range and the integrity to help them do it.

COMPARE THIS BIKE In comparison

Up to
45km/h

Up to
200km

X15 48V
750W

912WH
48V 19AH

Torque
Sensor

Das-Kit
C8

Das-Kit
48V 3A

Max torque
70Nm

SPECIFICATION

Bike Components
Frame Alu. 6061, 26"*16.5 inches
Suspension Fork
Suntour, NEX-HLO 26, with hydraulic lock system
Brake
F/R: Das-Kit Hydraulic Disc Brakes, DK-100,F: 180mm rotor R: 180mm rotor
Freewheel
LY, 8 Speed, 11-32T, Silver
Tire
Arisun, H-5213E, 26*2.15, Black

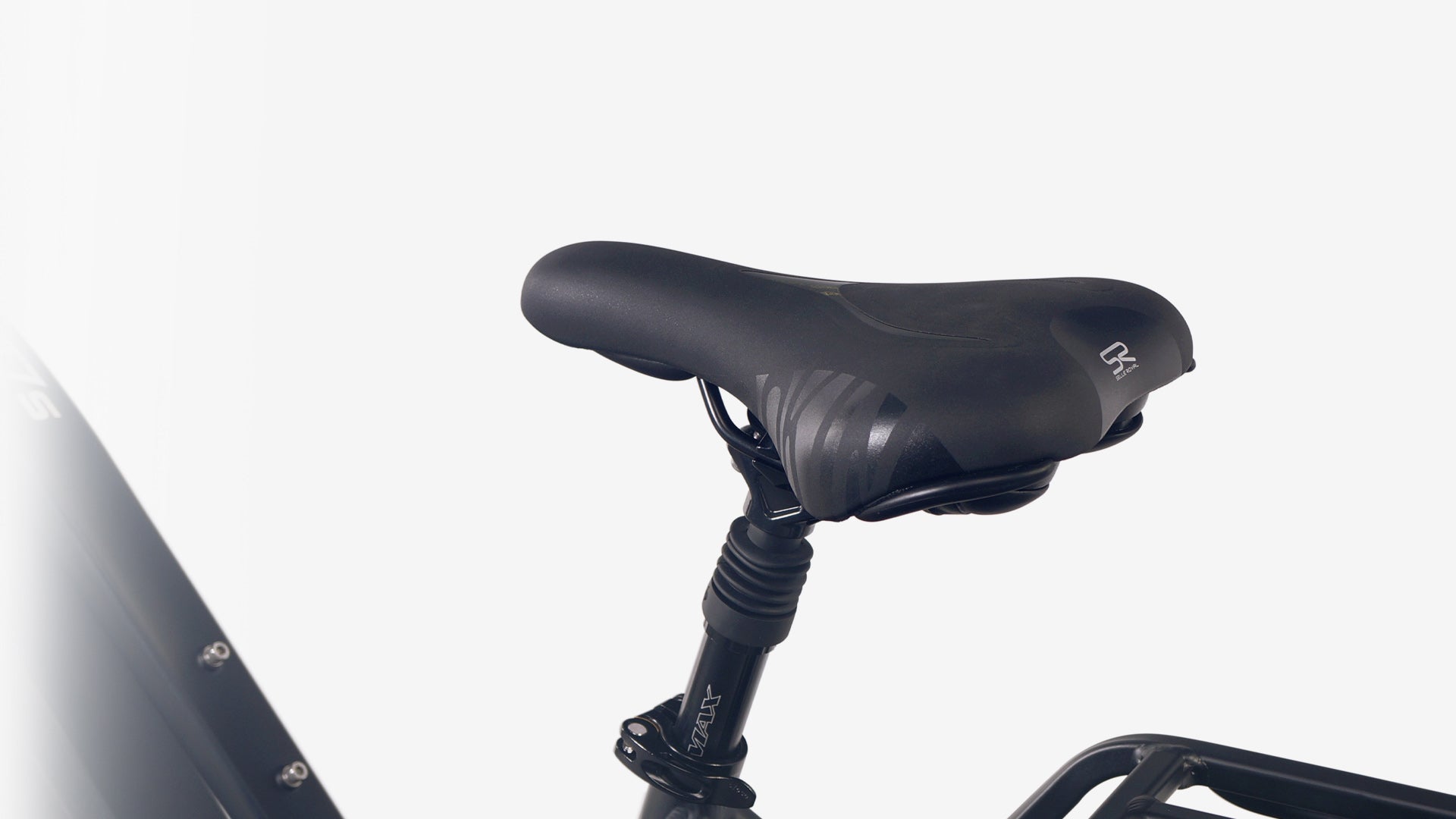

Saddle
Selle Royal, Lookin- Black
Stem
Promax, MA-579
Crank
Das-Kit, 52T
Shifter
Shimano, Altus, R: SL-M315-8R, 8 Speed, BK
Derailleur
Shimano, Acera, RD-M360
Chain
KMC, Z8.3RB, Silver
Electric Components
Battery
Das-Kit, i7-4819, 48V19AH, 912WH

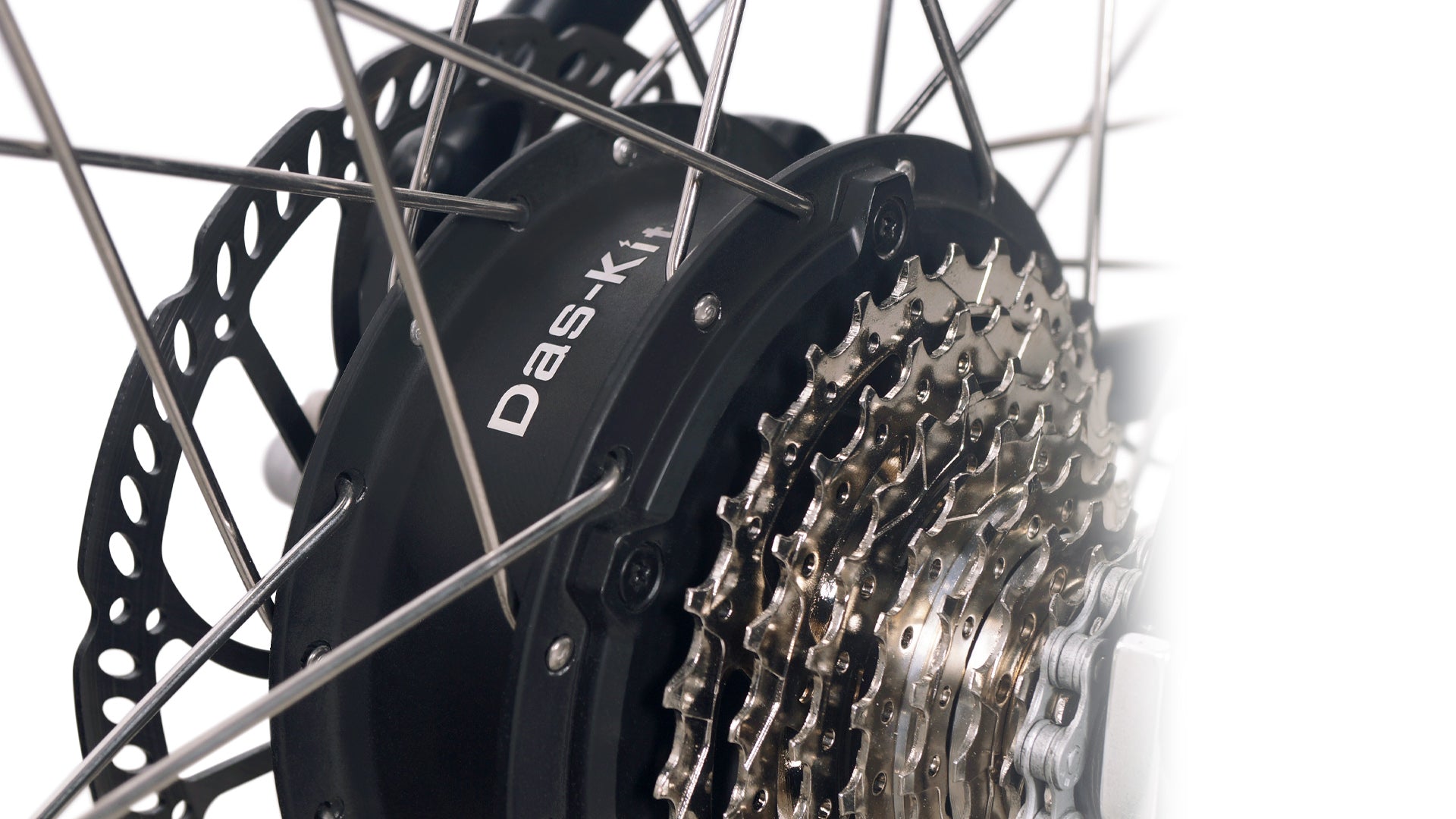

Motor
Das-Kit, X16, Rear drive motor, 48V 500W, 32KM/H
Controller
Das-Kit, T7+, 48V 22A
Charger
Das Kit, 48V3A

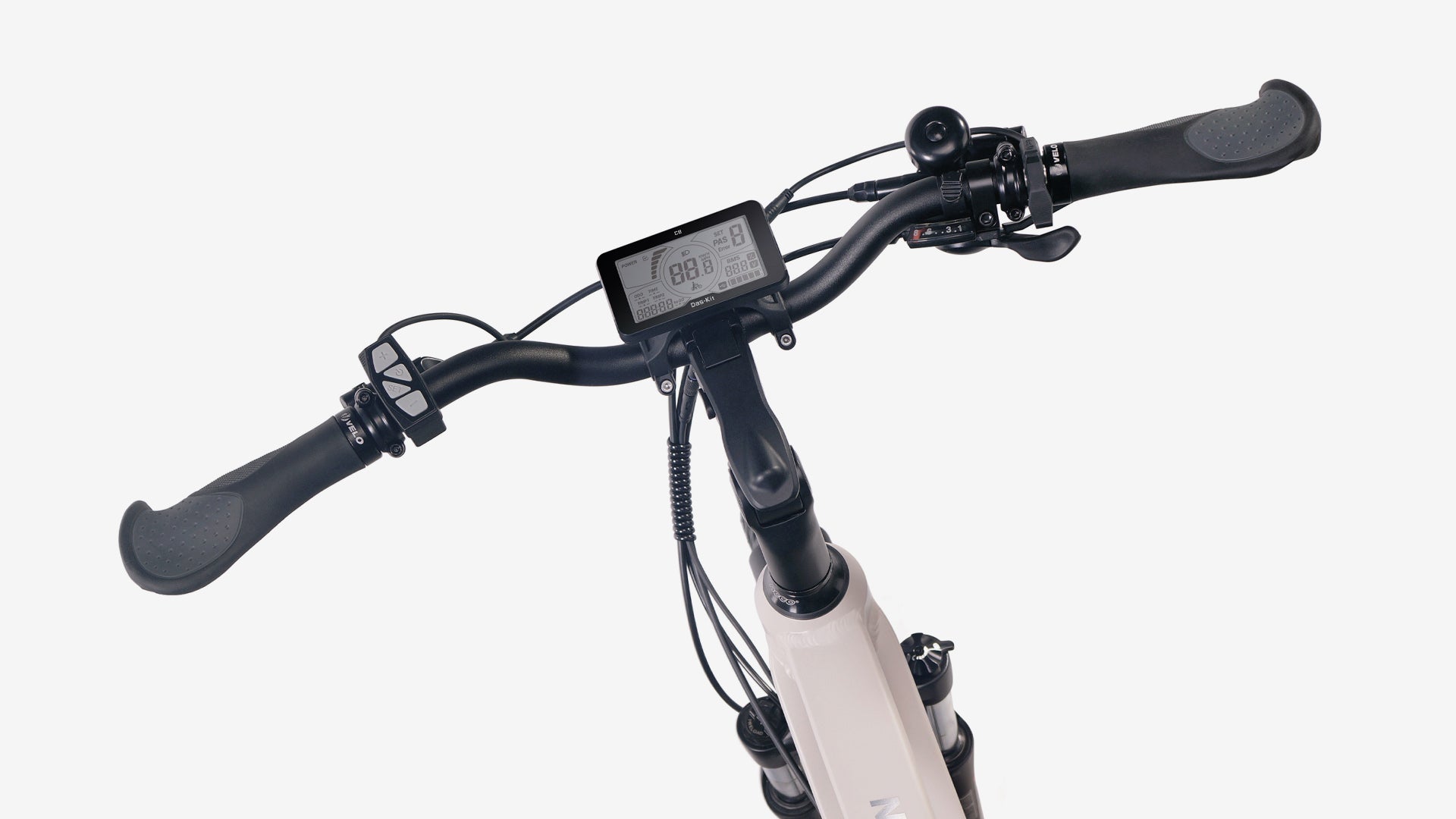

Display
Das-Kit, C8, with USB
Front Light
DH007Plus, 48V, 70Lux
Weight
Net Weight (with battery)
24.8kg
Battery Weight
4.8kg
Total Weight (driver+bike) 140kg

Suitable for riders 160cm+

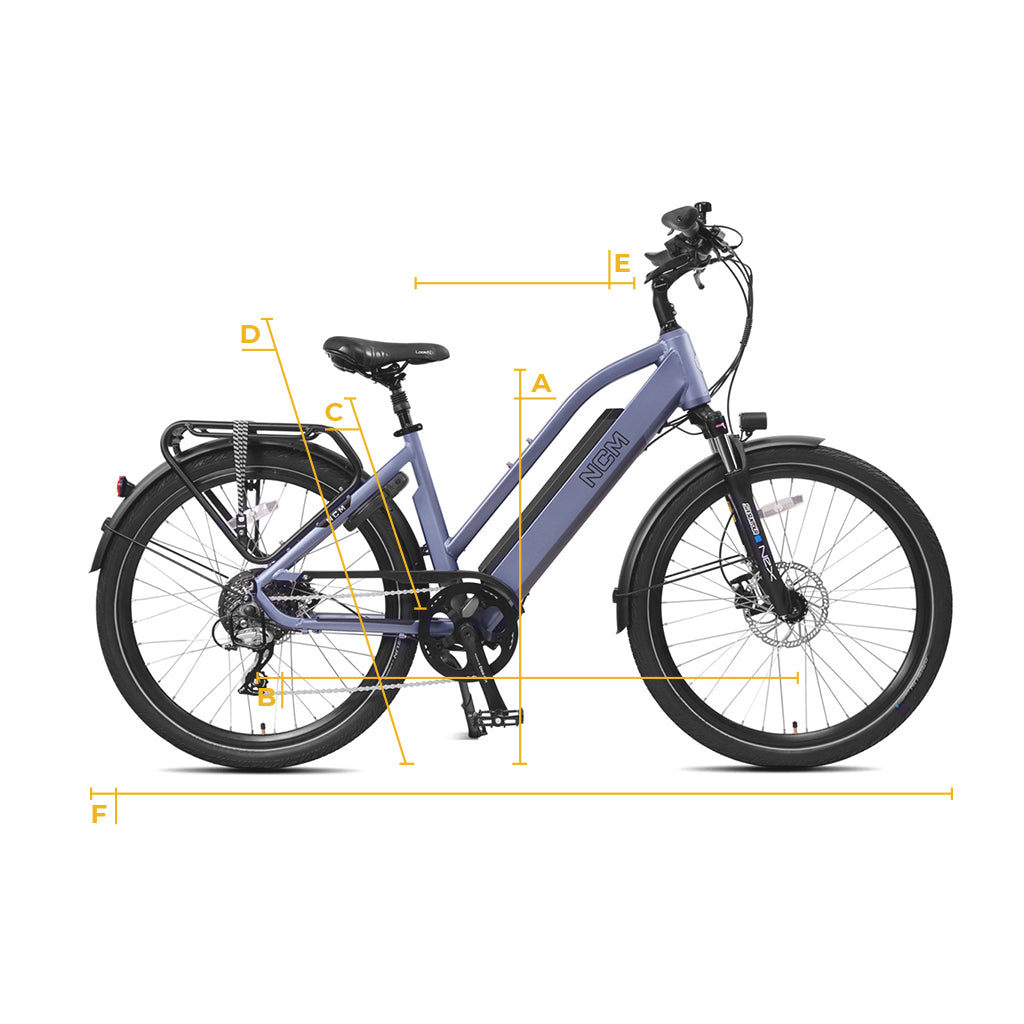

Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you.

26"

28"

A Stand over height 66.6 cm
71.2 cm
B. Wheel base 106.6 cm
107.5 cm
C. Frame Size 38 cm
43 cm
D. Min/Max seat height 80.3-94.3 cm
86.3-101.3 cm
E. Reach 39.4 cm
40.3 cm
F. Overall length 173.56 cm
174.5 cm
Recommended Height
160 - 175 cm
175 - 190 cm
