Sale
  • Sku: 9008210040

NCM Moscow Plus

$1,999.00 CAD
$1,799.00 CAD
Shipping calculated at checkout.
In stock!
Size
Color
View full details

NCM Moscow Plus
COMPARE THIS BIKE In comparison

Up to
32km/h

Up to
120km

X15 48V
500W

768WH
48V 16AH

Cadence
Sensor

Das-Kit
C7

Das-Kit
48V 3A

Max torque
60Nm

SIZES GEOMETRY

SIZE GUIDE

SUPPORT DOWNLOAD

NCM CATALOGUE

SPECIFICATION

Bike Components
Frame
Alu. 6061, 26"*17 inches / Alu. 6061, 27.5"*19 inches / Alu. 6061, 29"*20.5 inches
Suspension Fork
Suntour, XCM-HLO
Brake
Tektro Hydraulic Disc Brakes
Freewheel
8 Speed, 11-32T
Tire
Schwalbe, Black Jack, Smart Sam
Saddle
Selle Royal, Lookin-A200UR, Black
Crank Das-Kit, CM48, 28/38/48T
Front Derailleur		 Shimano, Altus, FD-M310
Rear Derailleur Shimano, Acera, RD-M360
Shifter Left Shimano, Altus, F:SL-M315-L, 3 Speed
Shifter Right Shimano, Altus, R:SL-M315-8R, 8 Speed
Chain KMC Z51
Electric Components
Battery
Das-Kit, i5-4816, 48V 16AH, 768WH

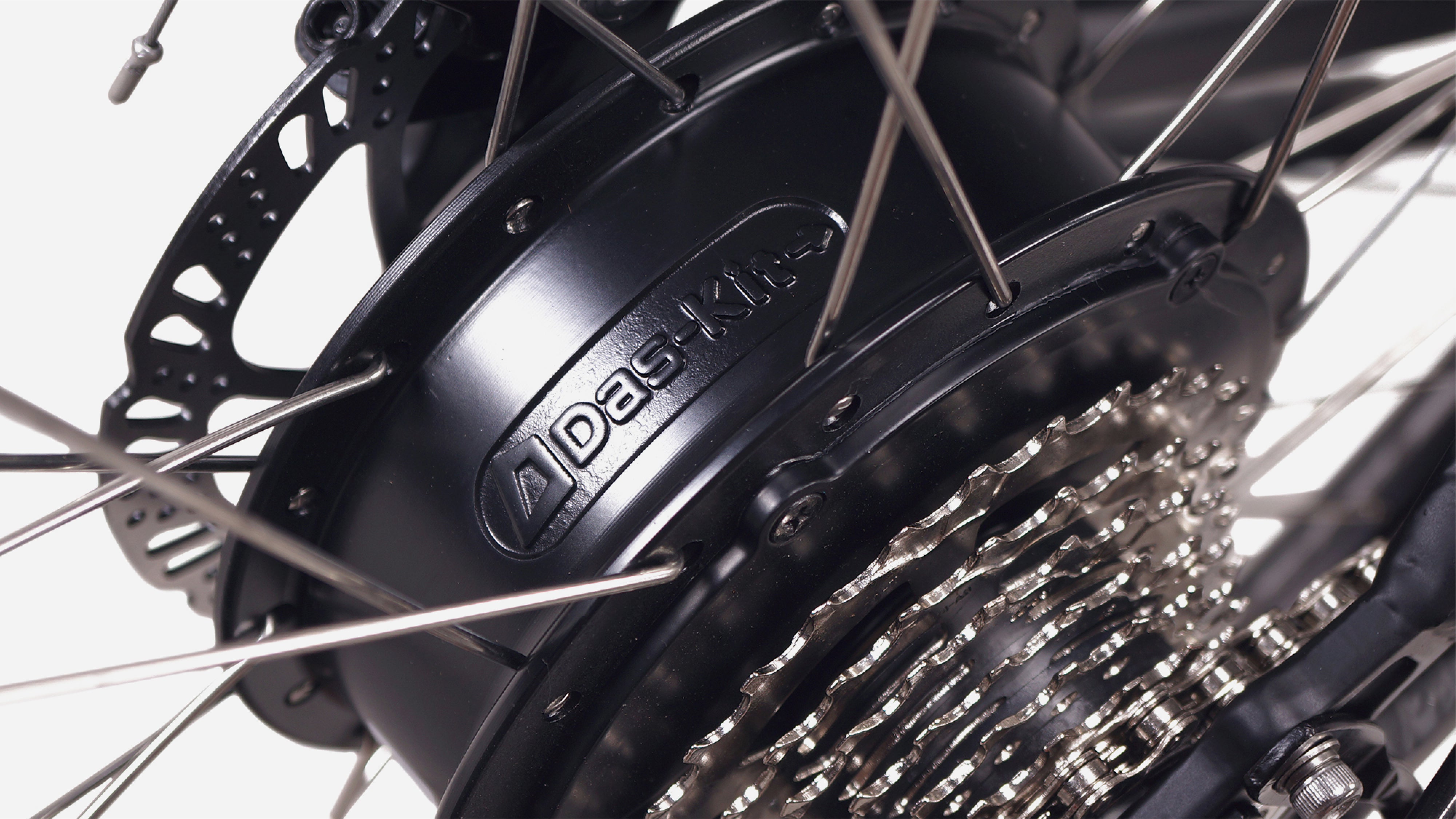

Motor		 Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H
Controller
Das-Kit, CT5-i5, 48V 18A
Charger Das-Kit, 48V3A

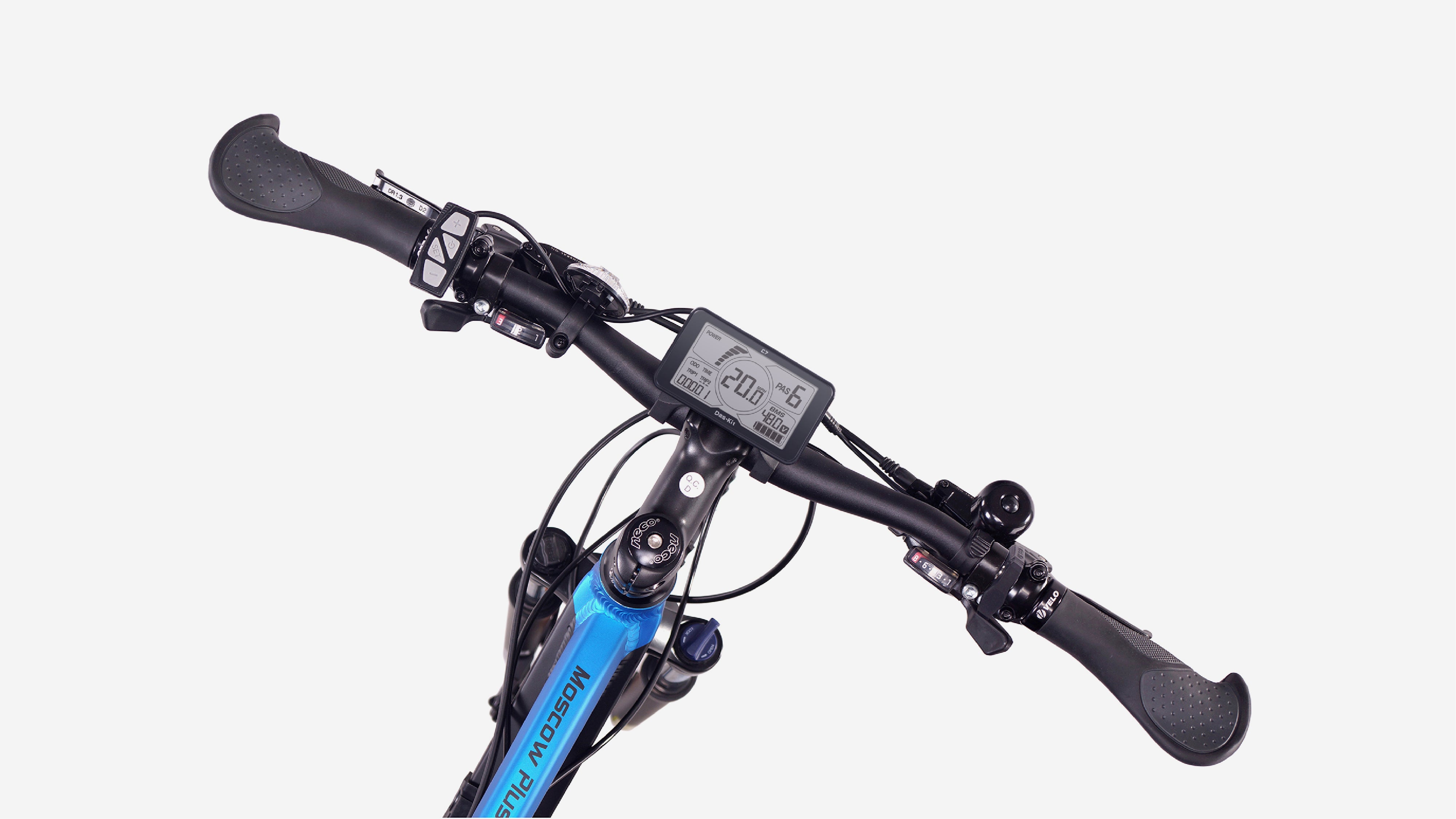

Display
Das-Kit, C7
Weight
Net Weight (with battery) 26kg
Battery Weight		 4kg
Total Weight (driver+bike) 125kg

Suitable for riders 160cm+

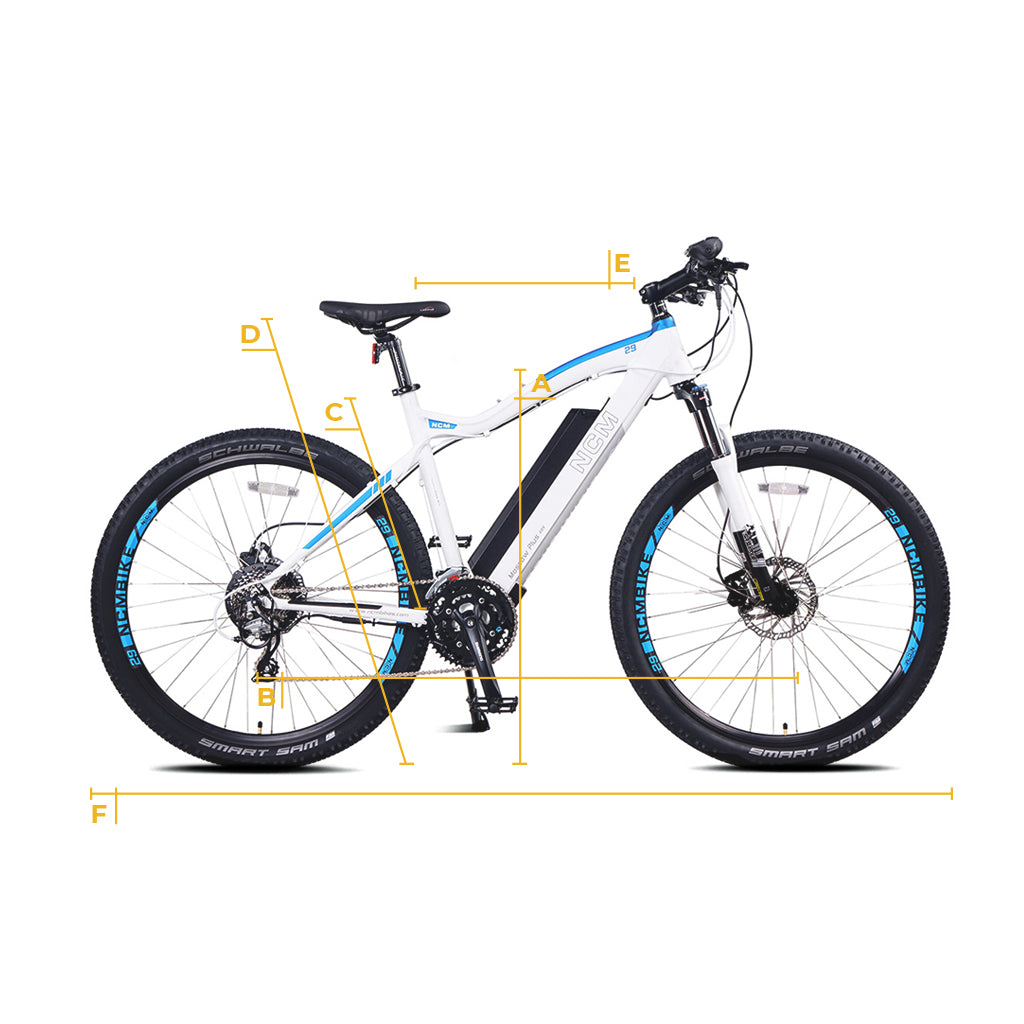

Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you.

26"

27.5"

29"
A Stand over height 76 cm
76.2 cm
82.5 cm
B. Wheel base 108 cm
108 cm
110 cm
C. Frame Size 48 cm
48.2 cm
50.8 cm
D. Min/Max seat height 84-104 cm
86.8-103 cm
89.6-106 cm
E. Reach 41 cm
53 cm
53 cm
F. Overall length 178 cm
180 cm
195 cm
Recommended Height
160 - 175 cm
170 - 185 cm
180 - 195 cm
