- Sku: 9041210028

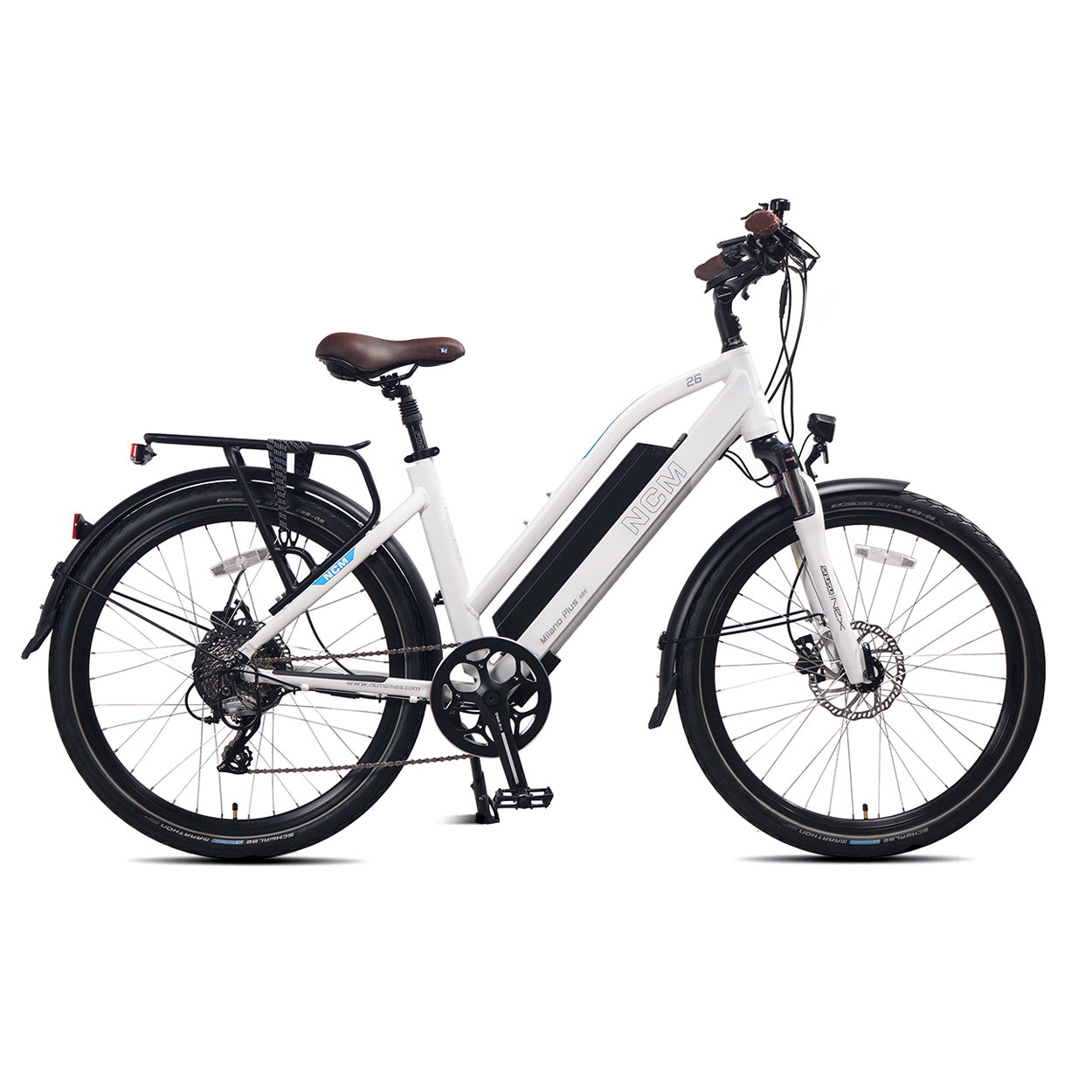

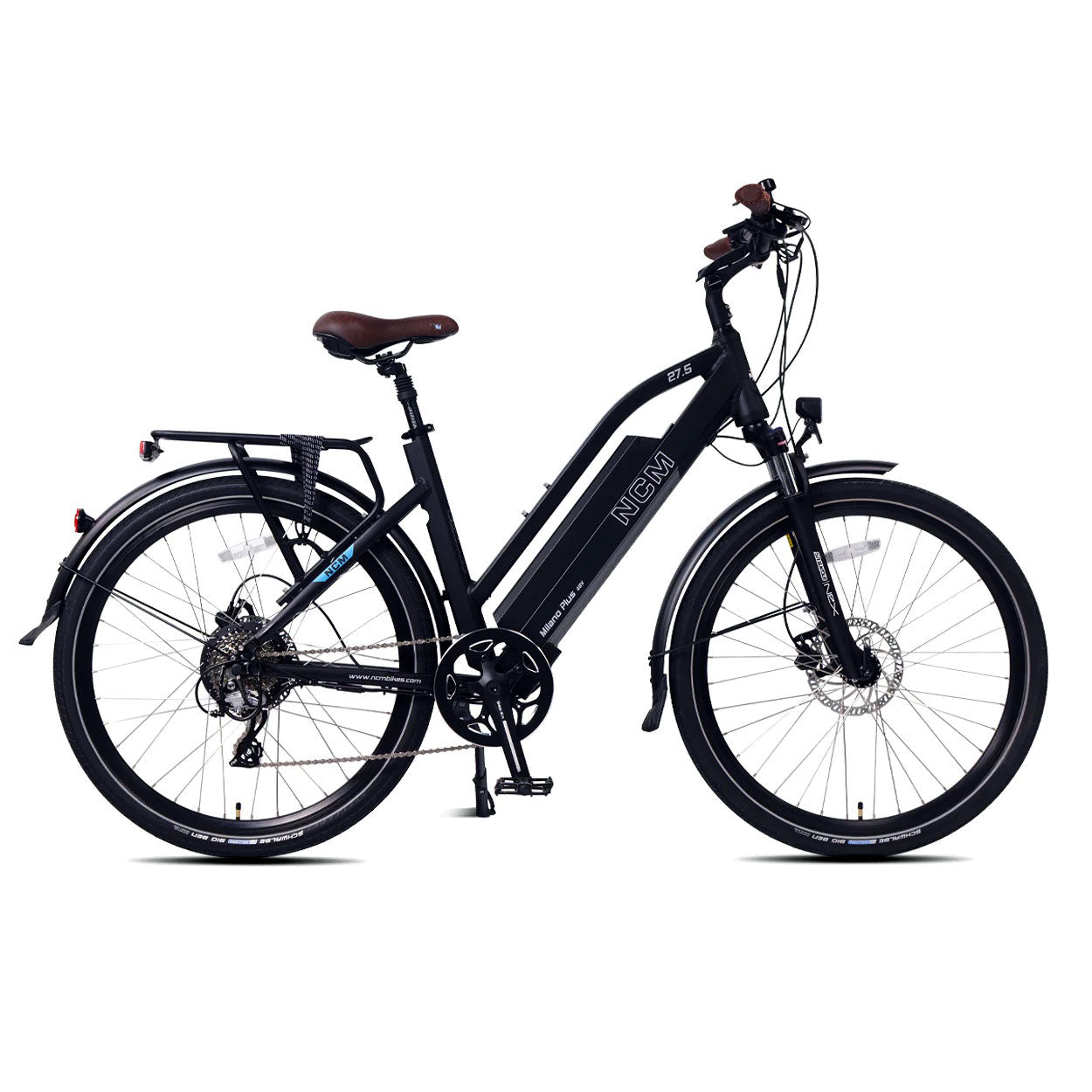

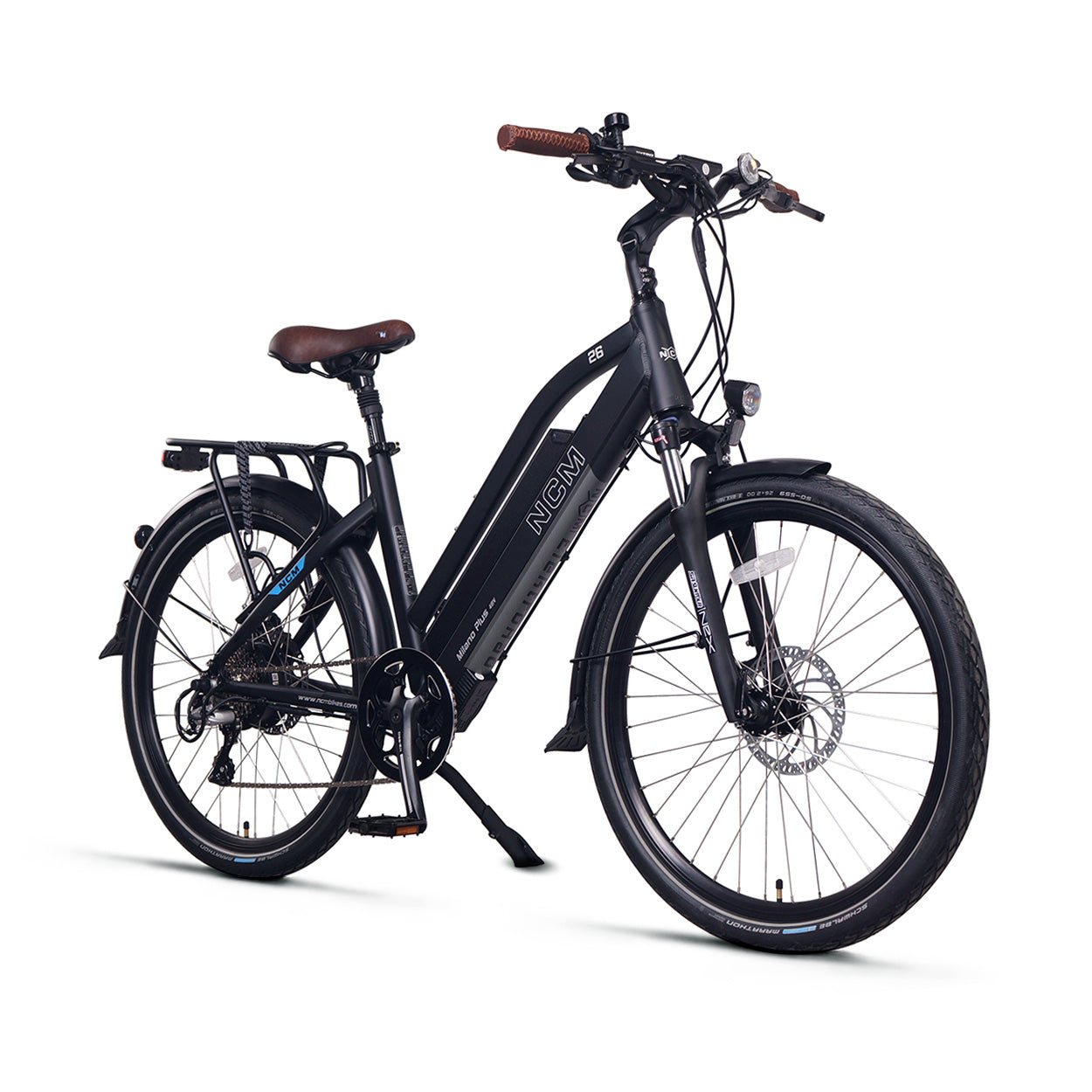

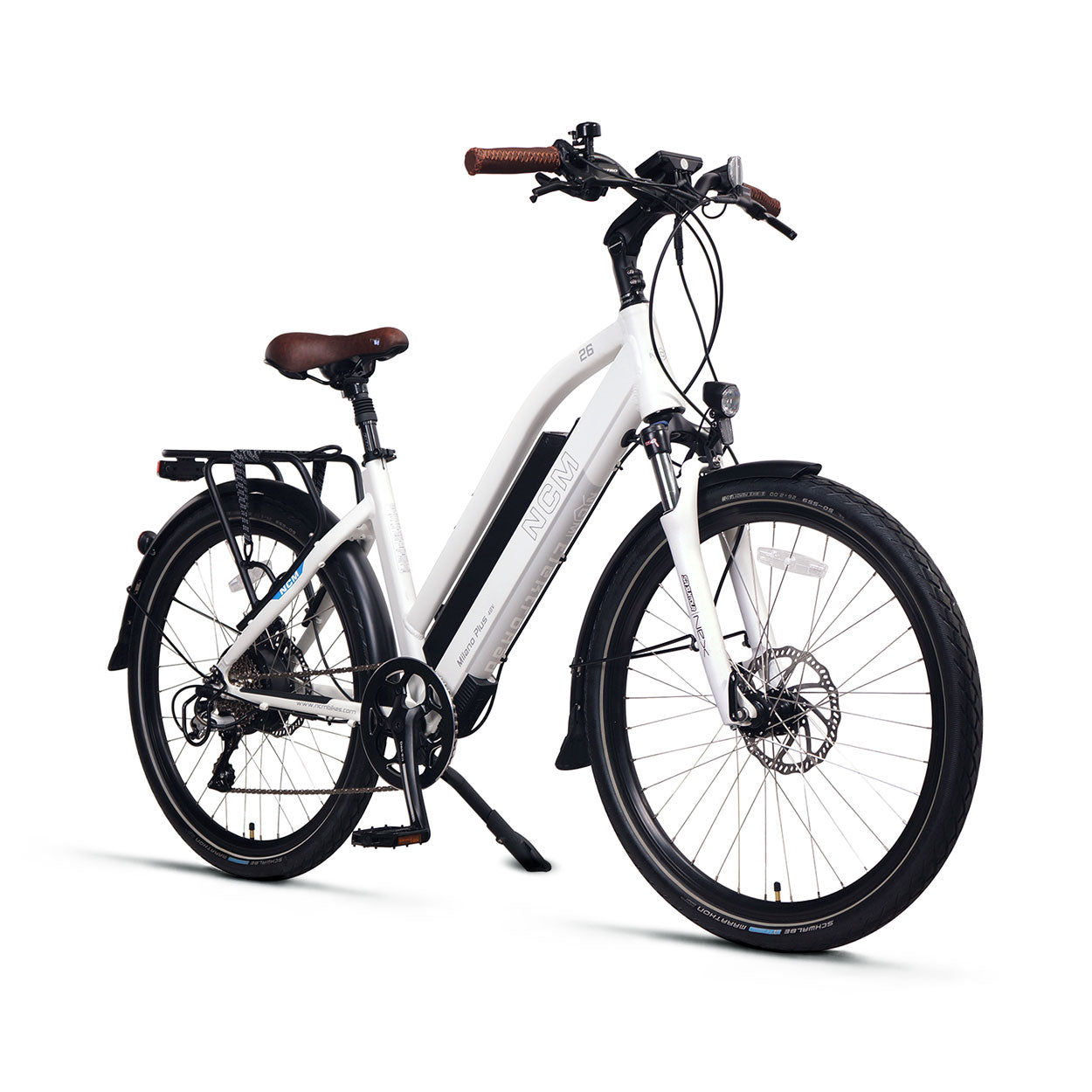

NCM Milano Plus
$1,999.00 CAD
Shipping calculated at checkout.
In stock!
Battery：48V 16Ah, 768Wh
Range： up to 120 km
Have a question?
NCM Milano Plus
Up to
32km/h
Up to
120km
X15 48V
500W
768WH
48V 16AH
Cadence
Sensor
Das-Kit
C7
Das-Kit
48V 3A
Max torque
60Nm
SPECIFICATION
| Bike Components |
| Frame | Alu. 6061, 26"*17 inches / Alu. 6061, 27.5"*19 inches |
| Suspension Fork | Suntour, NEX-HLO |
| Brake | Hydraulic Disc Brakes |
| Freewheel | LY, 8 Speed, 11-32T |
| Tire | Schwalbe, Marathon/Big Ben |
| Saddle | Selle Royal, FREEWAY |
| Stem | Promax. MA-579 |
| Crank | Das-Kit, CT48A, 48T |
| Shifter | Shimano, Altus, R:SL-M315-8R, 8 Speed |
| Derailleur | Shimano, Acera, RD-M360 |
| Chain | KMC, Z51 |
| Electric Components |
| Battery | Das-Kit, i5-4816, 48V 16AH, 768WH, with an USB Port |

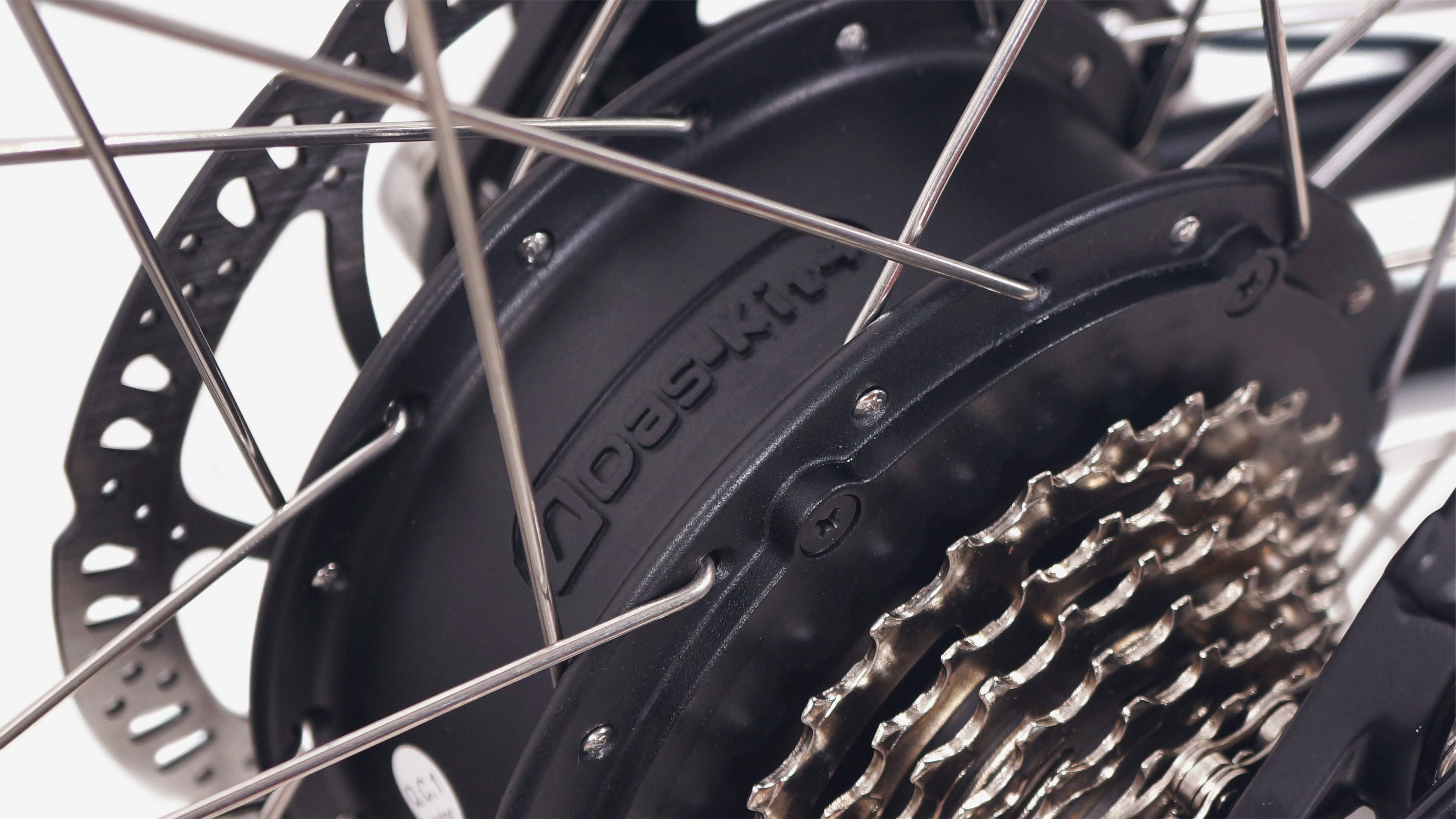

| Motor | Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H |
| Controller | Das-Kit, CT5-I5, 48V 18A |
| Charger | Das-Kit, 48V3A |

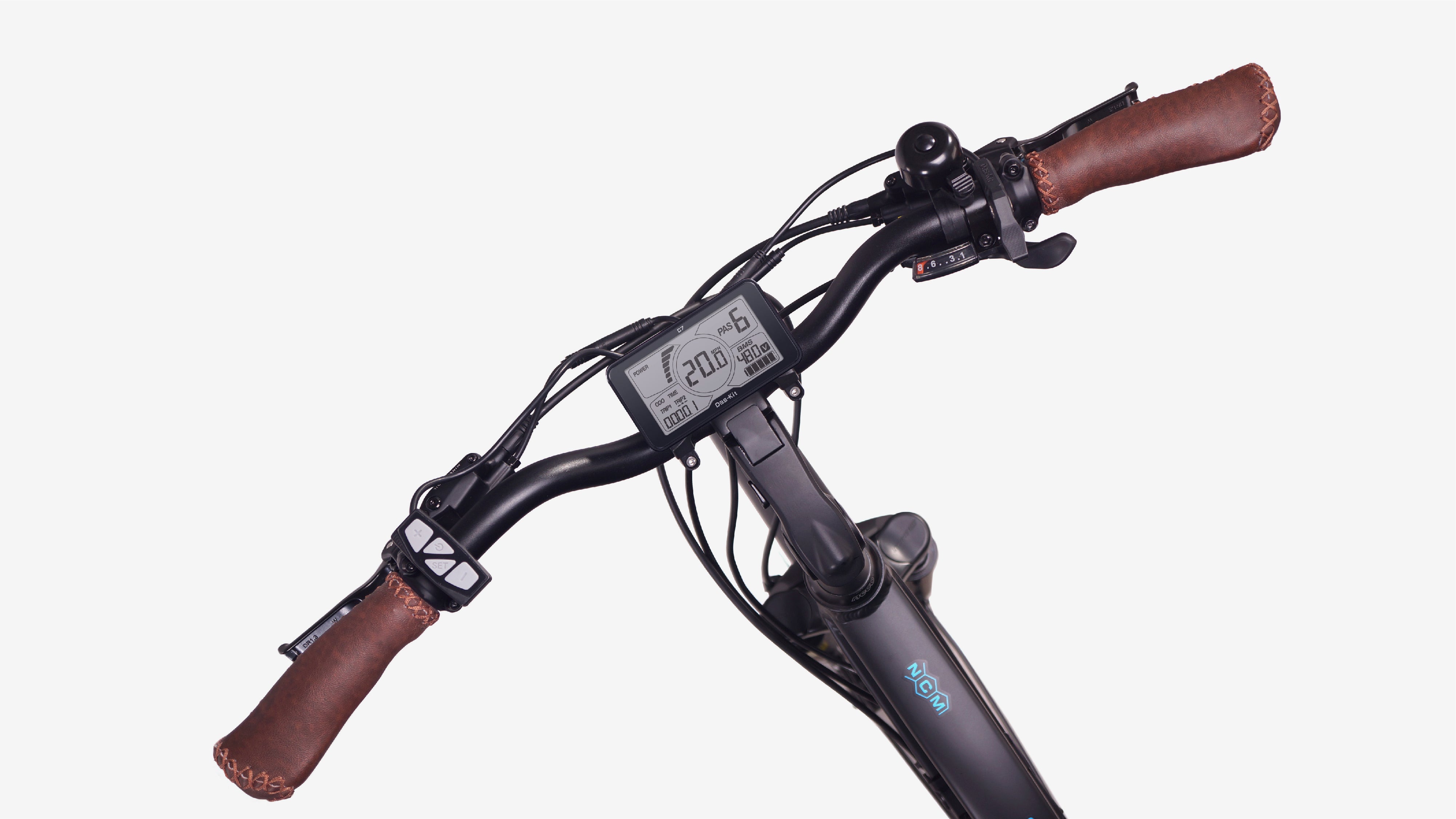

| Display | Das-Kit, C7 |

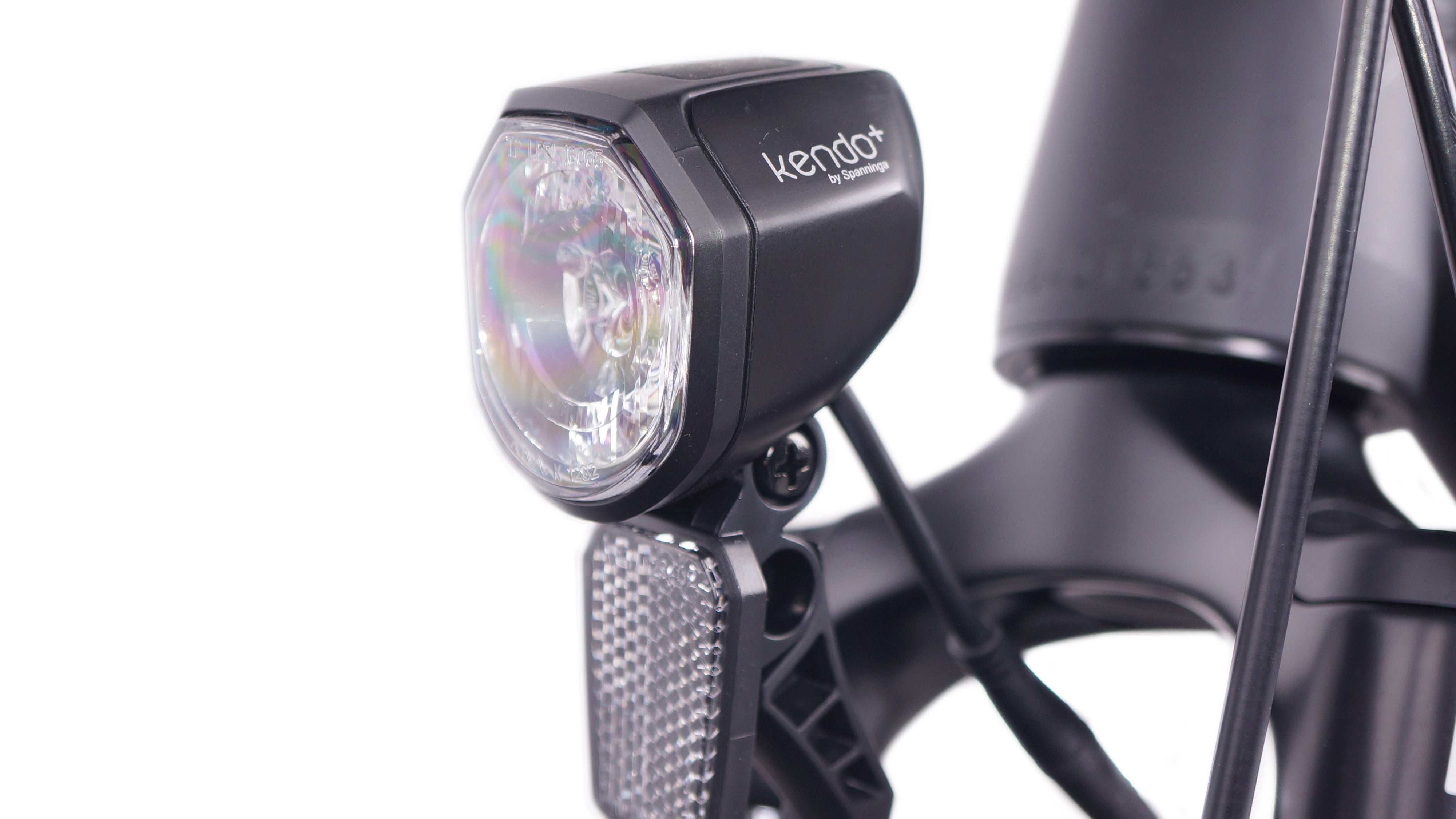

| Front Light | Kendo, 48V, 30 Lux |
| Rear Light | DR009, AAA*2 |
| Weight |
| Net Weight (with battery) | 27kg |
| Battery Weight | 4.1kg |
| Total Weight (driver+bike) | 140kg |
Suitable for riders 160cm+ |

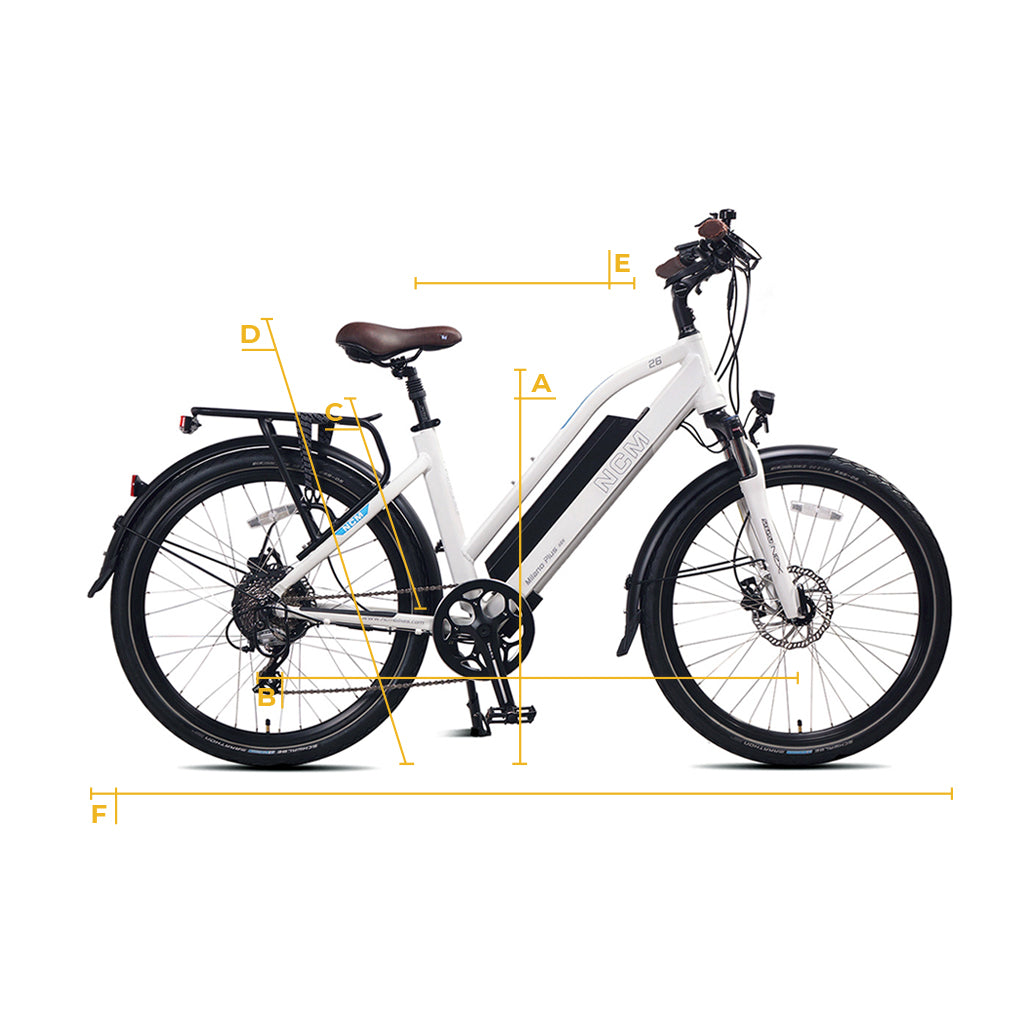

| Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
26" |
27.5" |
|
| A Stand over height | 76.2 cm | 76.2 cm |
| B. Wheel base | 108 cm | 108 cm |
| C. Frame Size | 45.7 cm | 48.2 cm |
| D. Min/Max seat height | 86.8-98 cm | 86-102.8 cm |
| E. Reach | 53 cm | 53 cm |
| F. Overall length | 180 cm | 180 cm |
 Recommended Height
|
160 - 175 cm | 170 - 185 cm |
