Sale
- Sku: 9008210013
NCM M3
$1,499.00 CAD
$1,349.00 CAD
Shipping calculated at checkout.
Just 5 left. Order soon!
Have a question?

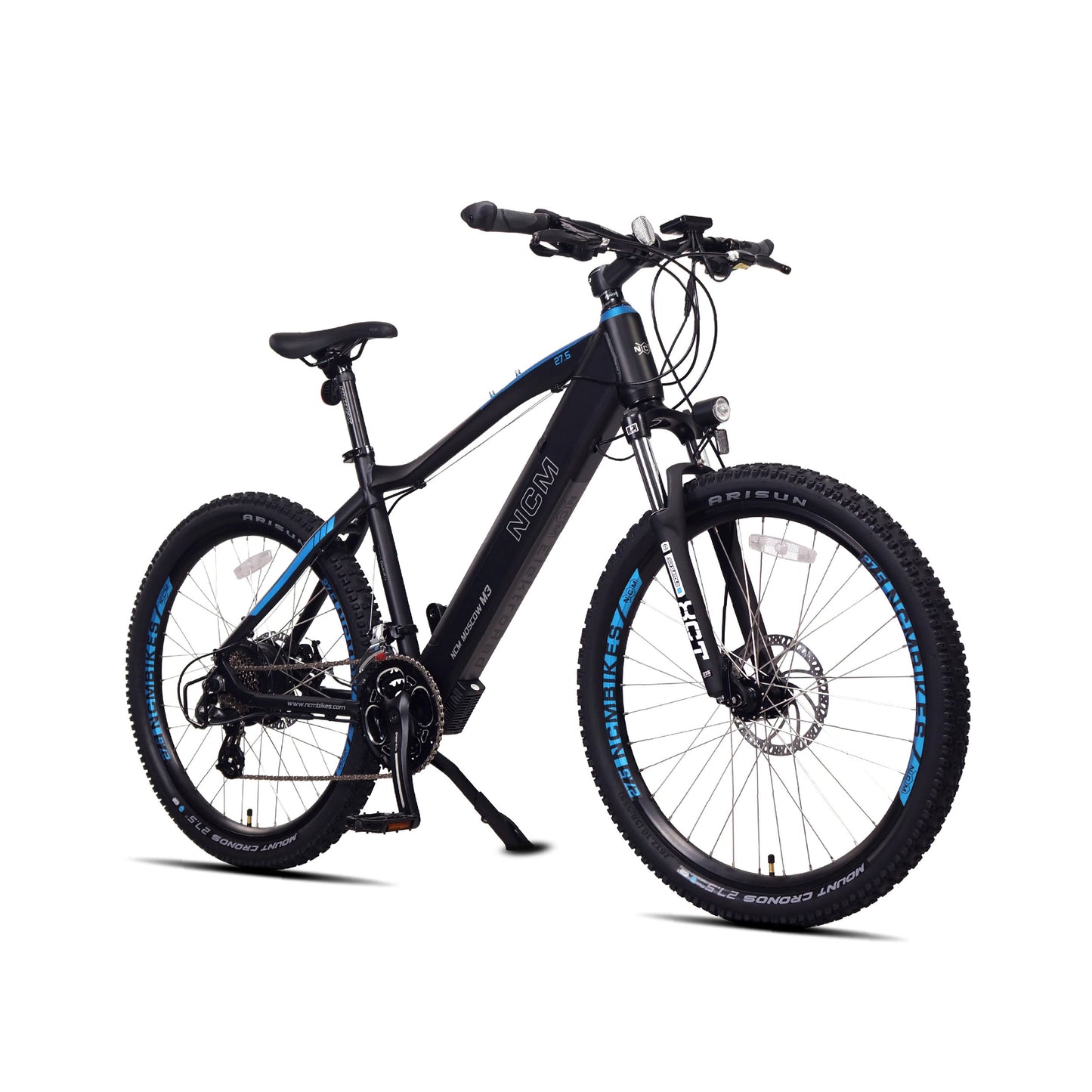

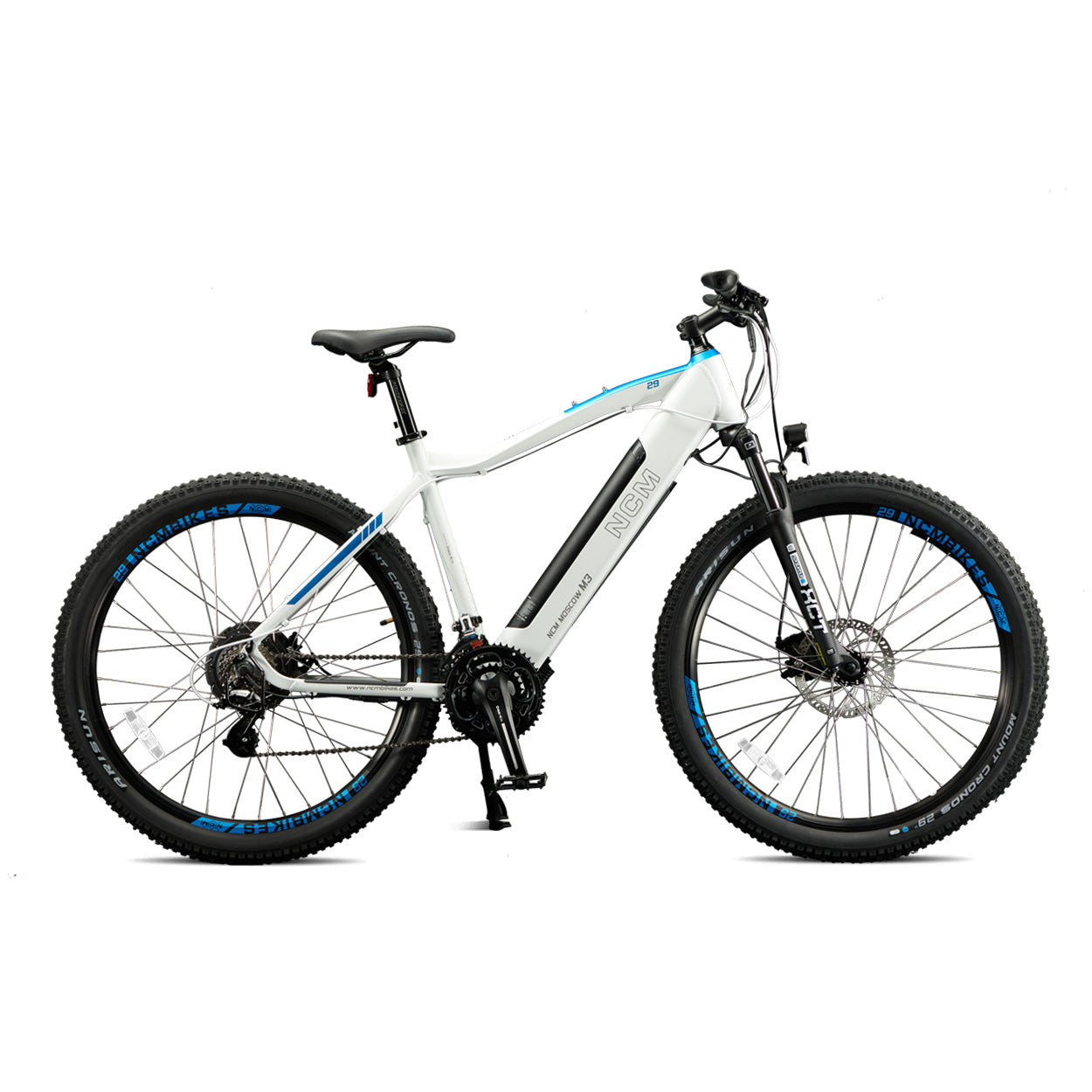

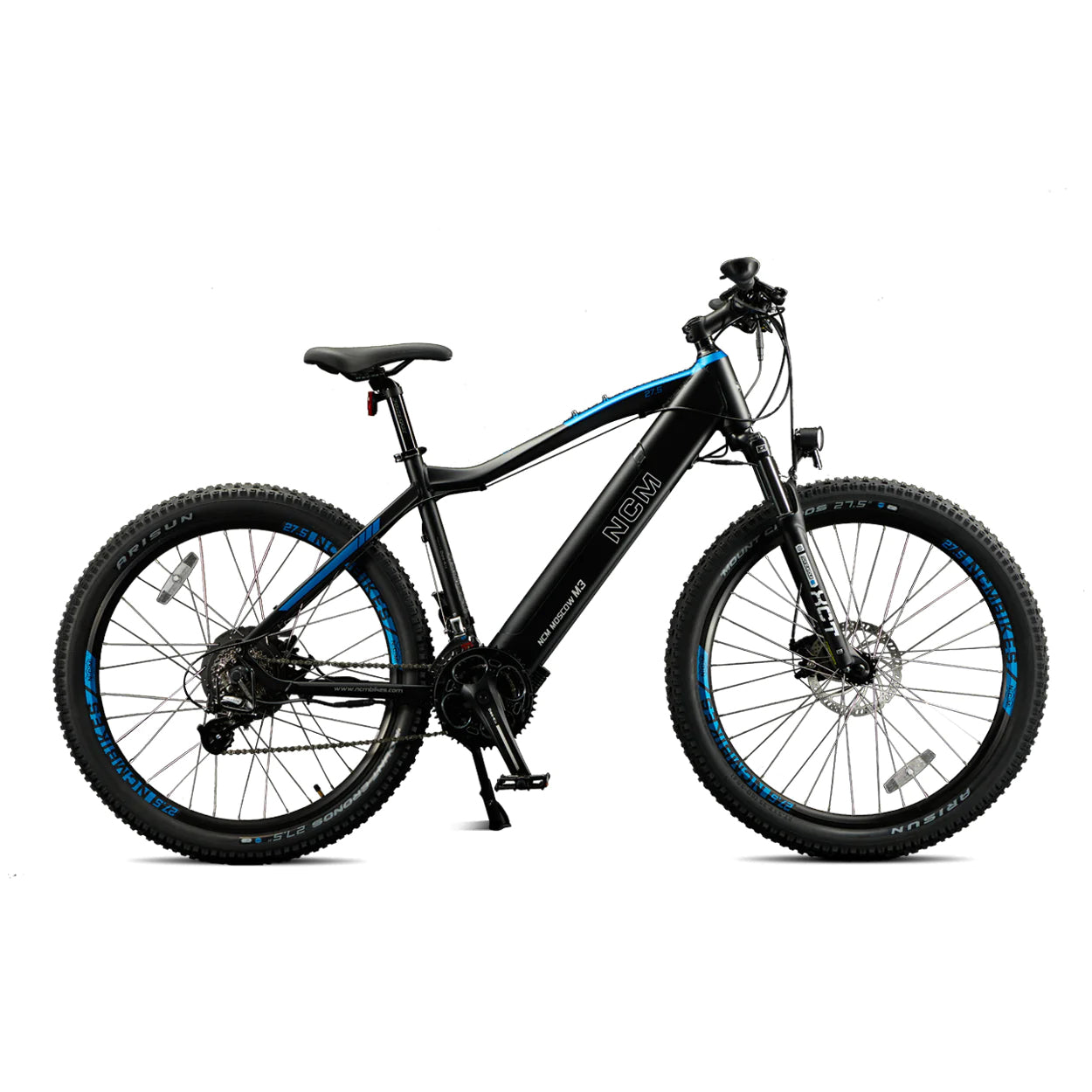

NCM M3
Up to
32km/h
Up to
80km
X15 48V
500W
576WH
48V 12AH
Cadence
Sensor
Das-Kit
L7
Das-Kit
48V 2A
Max torque
60Nm
SPECIFICATION
| Bike Components |
| Frame | Alu. 6061, 26"*18inches / 27.5"*19 inches / 29"*20.5 inches |
| Suspension Fork | Suntour, XCT |
| Brake | Disc Brakes |
| Freewheel | 7 Speed, 14-28T |
| Tire | Arisun Mount Cronos |

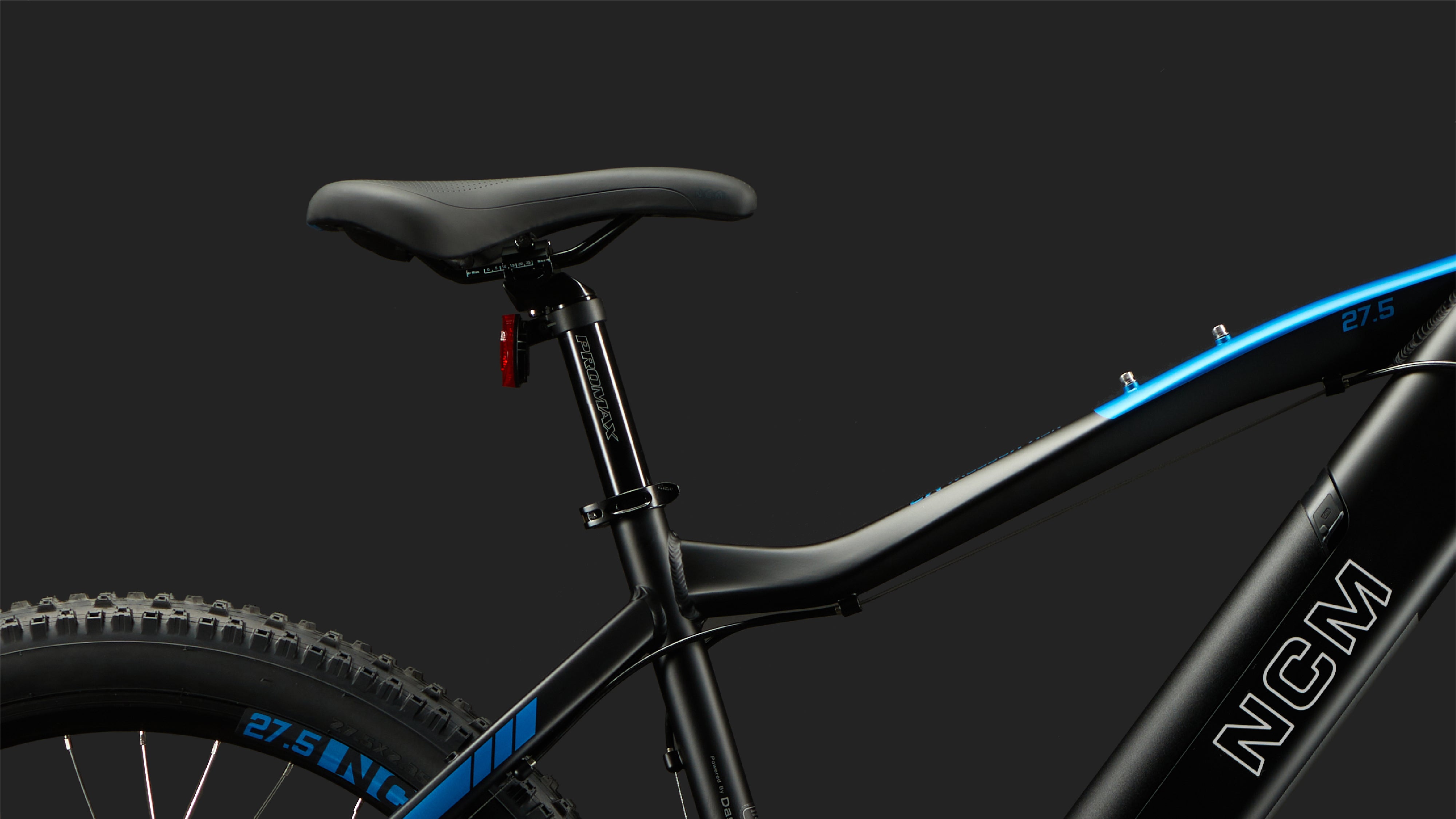

| Saddle | VELO, VL-3410 |
| Stem | Promax, Alu.MA-471 |
| Crank | Das-Kit, CM48, 28/38/48T |
| Shifter Lever-Left |
Shimano, Altus, F: SL-M315-L, 3 Speed |
| Shifter Lever-Right |
Shimano, Altus, R: SL-M315-7R, 7 Speed |
| Front Derailleur | Shimano, Altus, FD-M313 |
| Rear Derailleur | Shimano, Altus, RD-M310 |
| Chain |
KMC, Z51 |
| Electric Components |
| Battery | Das-Kit, i6-4812, 48V 12AH, 576WH |
| Motor |

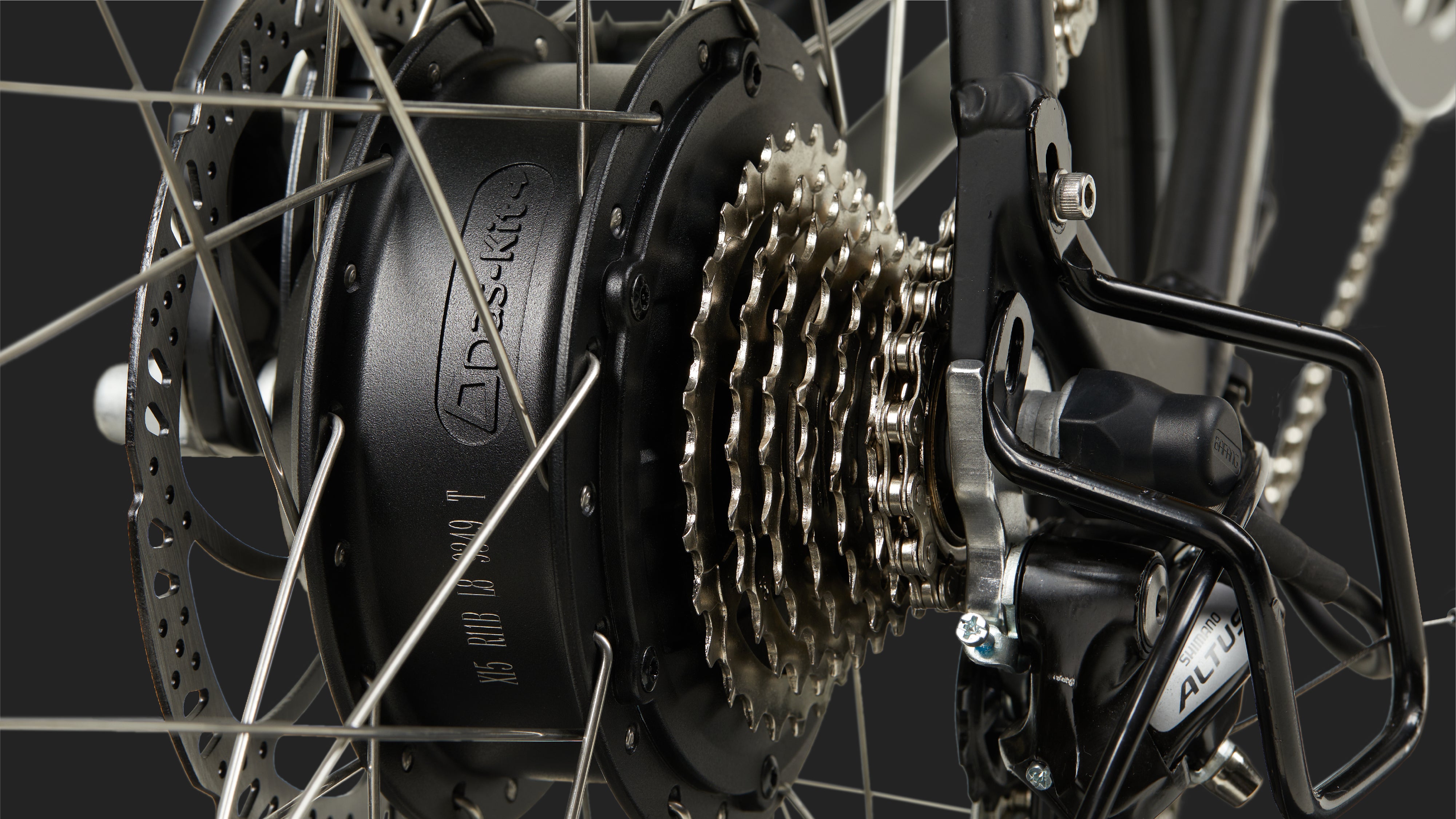

Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H |
| Controller |
Das-Kit, CT5-i6, 48V 18A |
| Charger | Das-Kit, 48V2A |
| Display | Das-Kit, L7 |

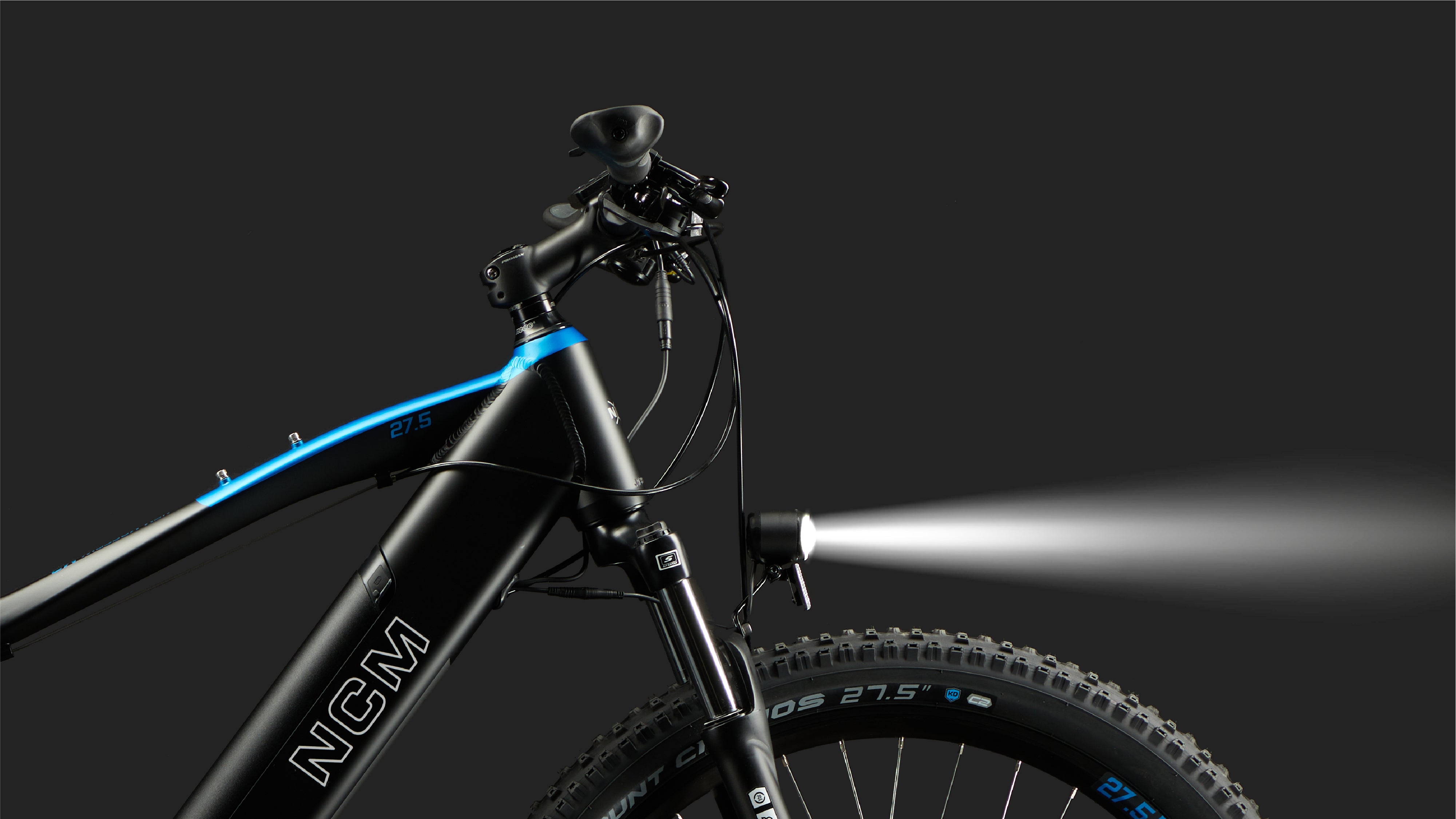

| Front Light | DH002, 48V, 40 Lux |
| Weight |
| Net Weight (with battery) | 26kg |
| Battery Weight | 3.4kg |
| Total Weight (driver+bike) | 125kg |
Suitable for riders 160cm+ |
| Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
26" |
27.5" |
29" |
|
| A Stand over height | 79 cm | 82 cm | 87 cm |
| B. Wheel base | 110 cm | 114 cm | 116 cm |
| C. Frame Size | 46 cm | 48 cm | 52 cm |
| D. Min/Max seat height | 83-102 cm | 86-106 cm | 92-111 cm |
| E. Reach | 43 cm | 43 cm | 43 cm |
| F. Overall length | 180 cm | 186 cm | 192 cm |
 Recommended Height
|
160 - 175 cm | 170 - 185 cm | 180 - 195 cm |
