- Sku: 9008200015
NCM Aspen
$1,599.00 CAD
Shipping calculated at checkout.
In stock!
Have a question?
NCM Aspen
Up to
32km/h
Up to
110km
X15F 48V
750W
624WH
48V 13Ah
Cadense
Sensor
Das-Kit
C7
Das-Kit
48V 3A
Max torque
60Nm
SPECIFICATION
| Bike Components |
| Frame | Alu. 6061, 27.5"*19 inches |
| Suspension Fork | RST, Guid-T-26, Alu. with suspension |
| Brake | Tektro Mechanical Disc Brakes |
| Freewheel | 7 Speed, 14-28T, Silver |
| Tire | CST, C1752, 26"*4.0, Black |
| Saddle | VELO, VL-3410, with "NCM" logo, Black |
| Stem | Promax. Alu.MA-471, Ext 90mm |
| Crank | Das-kit, CM48, 28/38/48T |

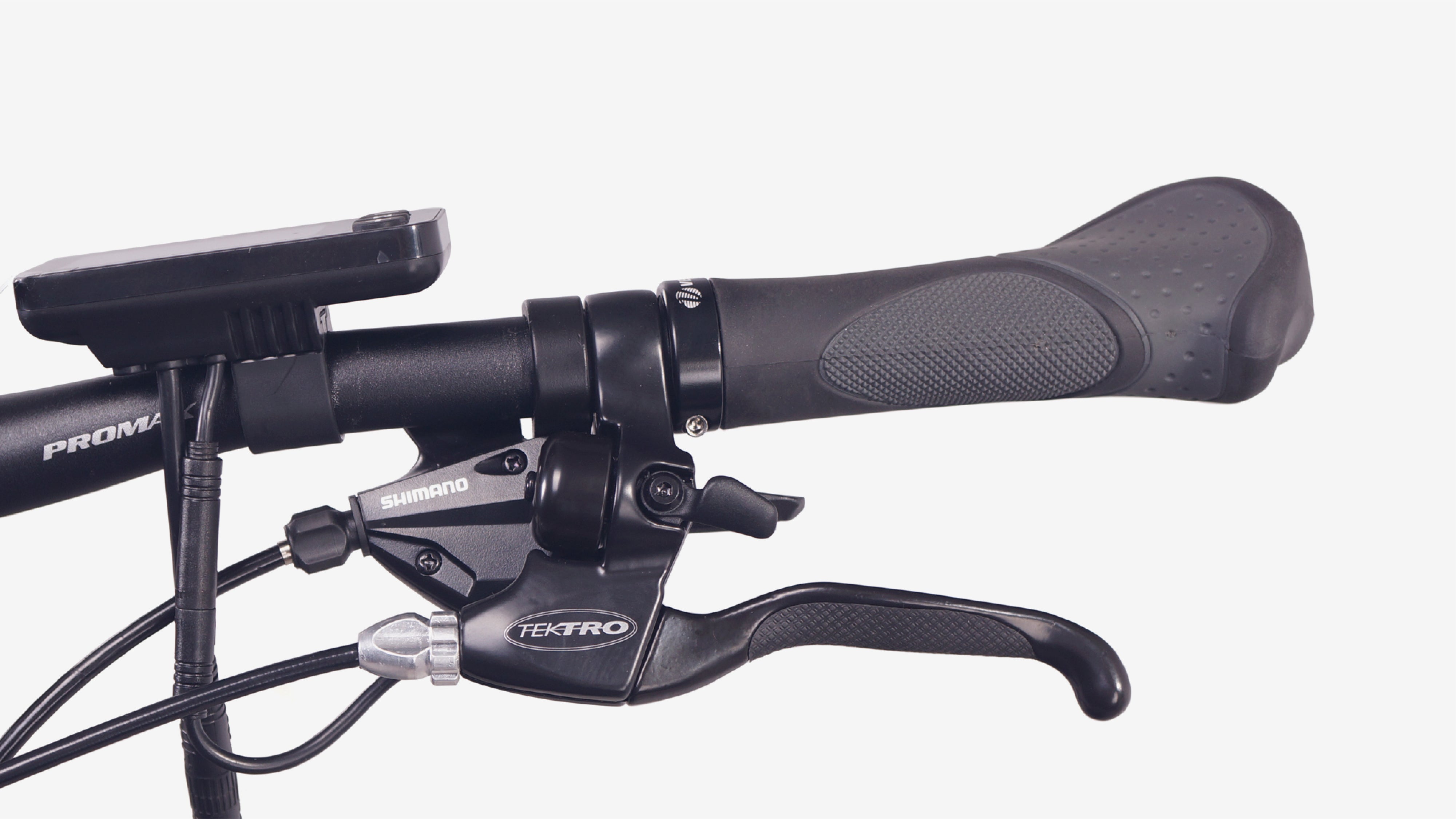

| Shifter | Shimano, Altus, F: M315-L, 3-Speed; R: M315-7R, 7-Speed |
| Front Derailleur | Shimano, Altus, FD-M310 |
| Rear Derailleur | Shimano, Altus, RD-M310 |
| Chain | KMC, Z51 |
| Electric Components |
| Battery | Das-Kit, i5-4813, 48V 13AH, 624WH |

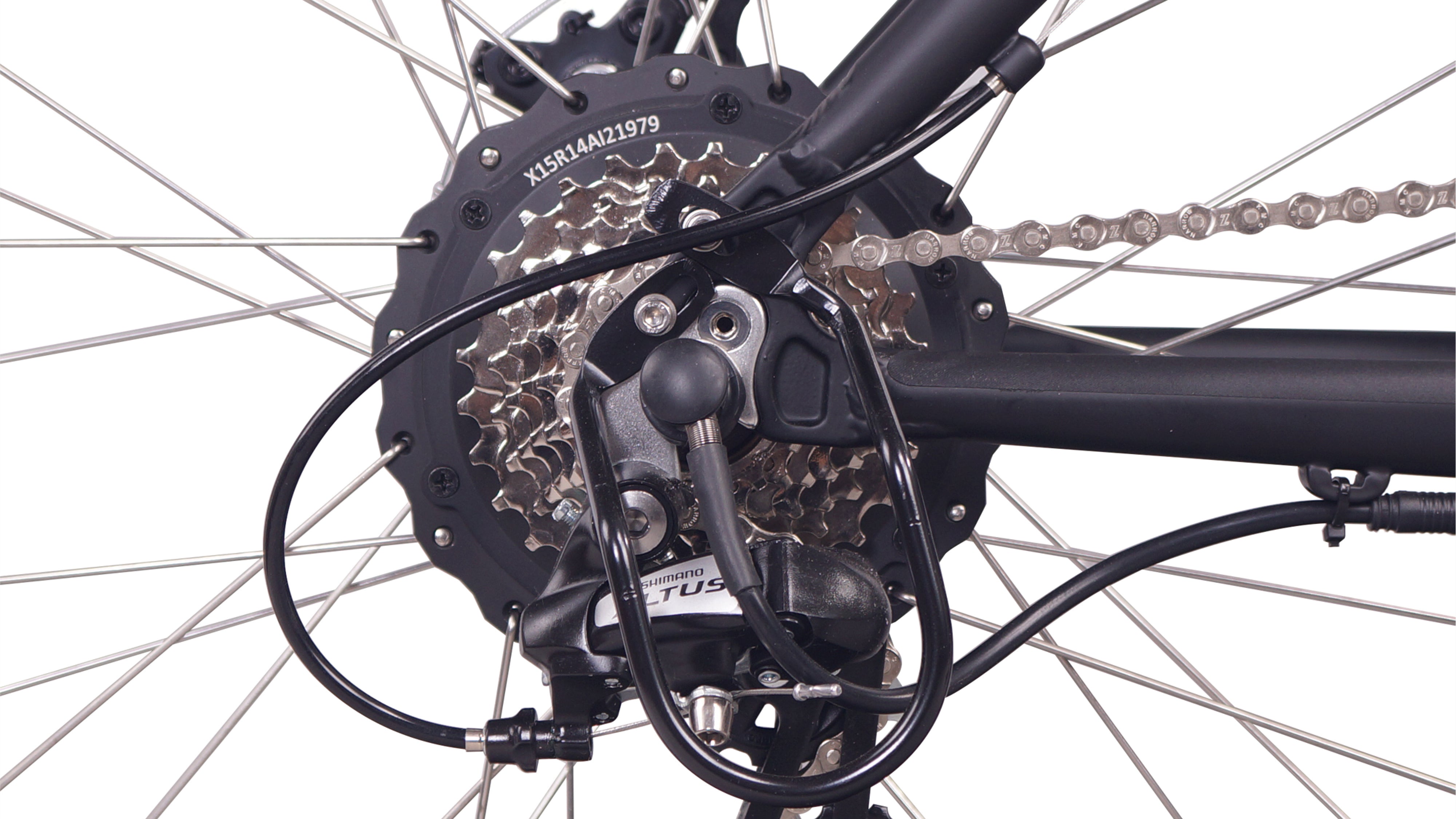

| Motor |
Das-Kit, X15F, 48V 500W / 750W, 32KM/H |
| Controller | Das-Kit, CT5-I5, 48V 18A |
| Charger | Das Kit, 48V2A |
| Display | Das-Kit, L7 |
| Front Light | DH002 48V, 40 Lux |
| Rear Light | DR009, AAA*2 |
| Weight |
| Net Weight (with battery) | 30kg |
| Battery Weight | 3.5kg |
| Total Weight (driver+bike) | 125kg |
Suitable for riders 160cm+ |
| Sizing my vary for each individual. Please refer to the stand over height in the chart below to find the best fit for you. |
Aspen / Aspen Plus |
|
| A Stand over height | 81 cm |
| B. Wheel base | 117 cm |
| C. Frame Size | 48 cm |
| D. Min/Max seat height | 89-108 cm |
| E. Reach | 53 cm |
| F. Overall length | 183 cm |
 Recommended Height
|
160 - 185 cm |
